| Shipping Weight | 3 lbs |
|---|---|
| Shipping Dimensions | 10.8 × 2.8 × 10.8 in |
| Manufacturer | ASUS |
| Manufacturer Part # | PRIME B860M-A WIFI-CSM |
| Motherboard Form Factor | Micro ATX |
| Chipset | Intel® B860 |
| Socket | LGA1851 |
| Processor Support | Intel® Core™ Ultra Processors (Series 2) |
| Memory Slots | 4 x DIMM Slots, Dual Channel |
| Memory Speed | DDR5 – Supports up to 8666+MT/s (OC), Supports Intel® Extreme Memory Profile (XMP) memory module |
| Memory Type | *Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM), Up to 192GB |
| Graphic Ports | 1 x HDMI 2.1, 2 x Display Ports 1.4 |
| Motherboard Expansion Slots | 1 x PCIe 4.0 x1, 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 5.0 x16 |
| Storage | 1 x M.2 (2242/2260/2280) PCIe 4.0 x 4, 4 x SATA 6Gb/s ports, 1 x M.2 (2242/2260/2280) PCIe 5.0 x4 |
| Storage Note | N/A |
| Onboard RAID | Intel® Rapid Storage Technology – SATA RAID 0/1/5/10 |

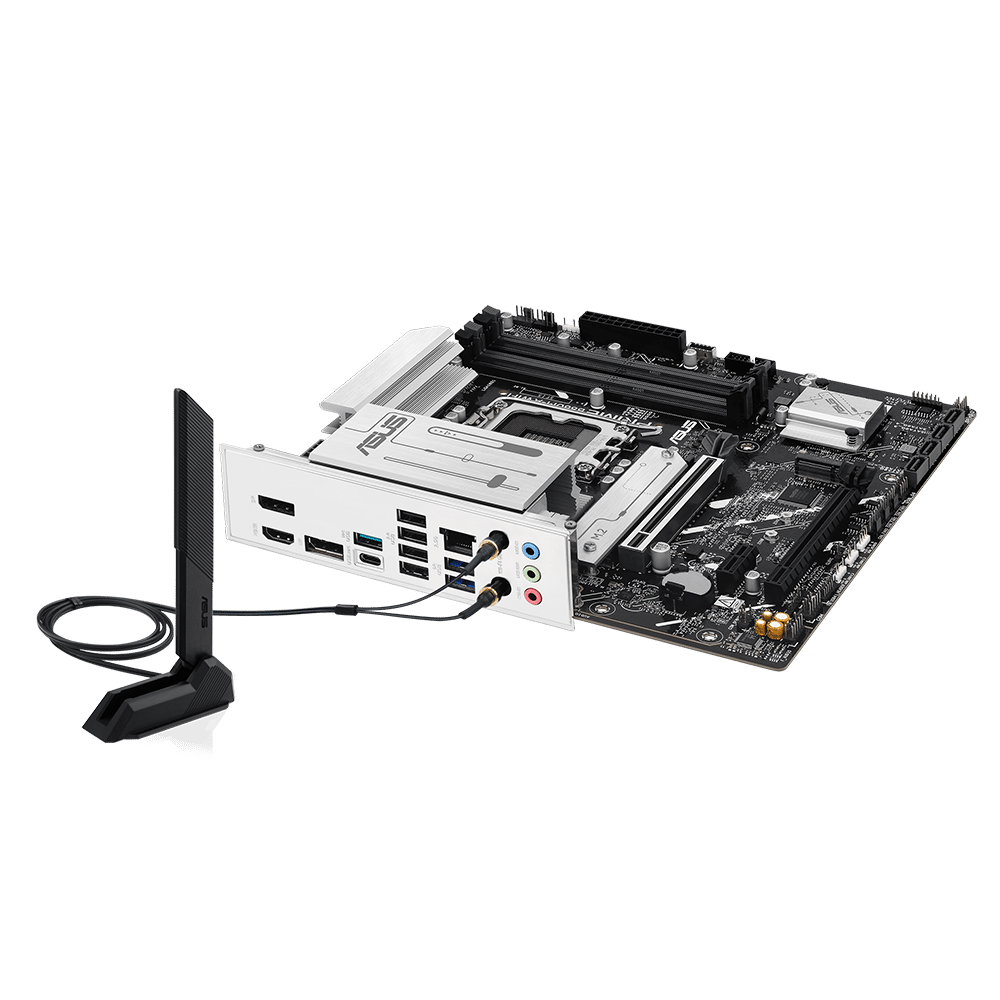

| Network | 1 x Realtek 2.5Gb Ethernet, Bluetooth® v5.3, WiFi 6E 2×2 802.11ax 2.4/5/6GHz |
| Audio | Line In, Line Out, Mic In, Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Front USB Header(s) | 1 x USB 10Gbps connector (supports USB Type-C®), 1 x USB 2.0 header supports 2 additional USB 2.0 ports, 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, USB Type-C® power delivery output: max. 5V/3A |

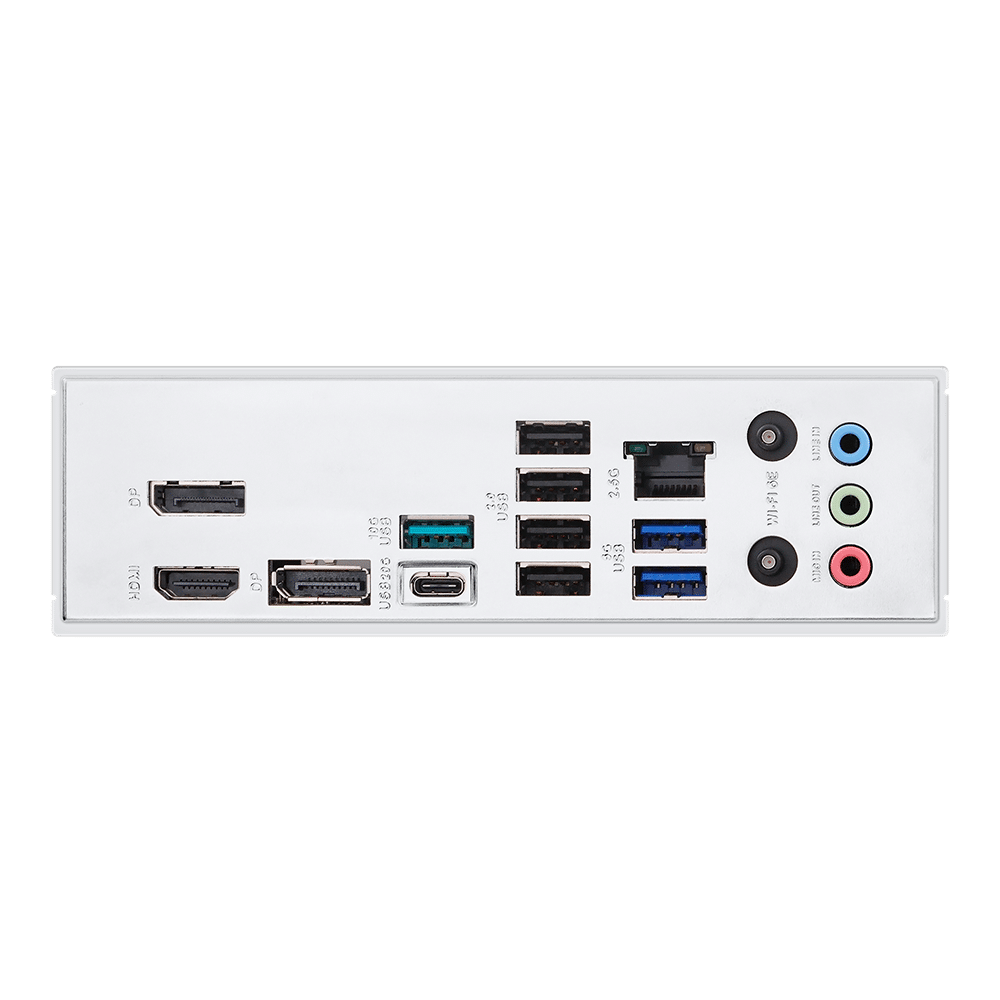

| Rear USB Ports | 1 x USB 10Gbps port (1 x Type-A), 1 x USB 20Gbps port (1 x USB Type-C®), 2 x USB 5Gbps ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth |
| Fan Connectors | 1 x CPU Fan Connector (1 x 4-pin), 1 x CPU OPT Fan Connector (1 x 4-pin), 3 x Chassis Fans (3 x 4-pin), 1 x 4-pin AIO Pump header |
| BIOS | 256 (128+128) Mb Flash ROM, UEFI AMI BIOS |
| Operating System Support | Windows 10 64-bit (21H2 & later), Windows 11 (22H2 & later) |
| Manufacturer Warranty | 3 Year |
$178.67
