| Shipping Weight | 1.55 lbs |
|---|---|
| Shipping Dimensions | 9.75 × 9 × 2 in |
| Manufacturer | ASUS |

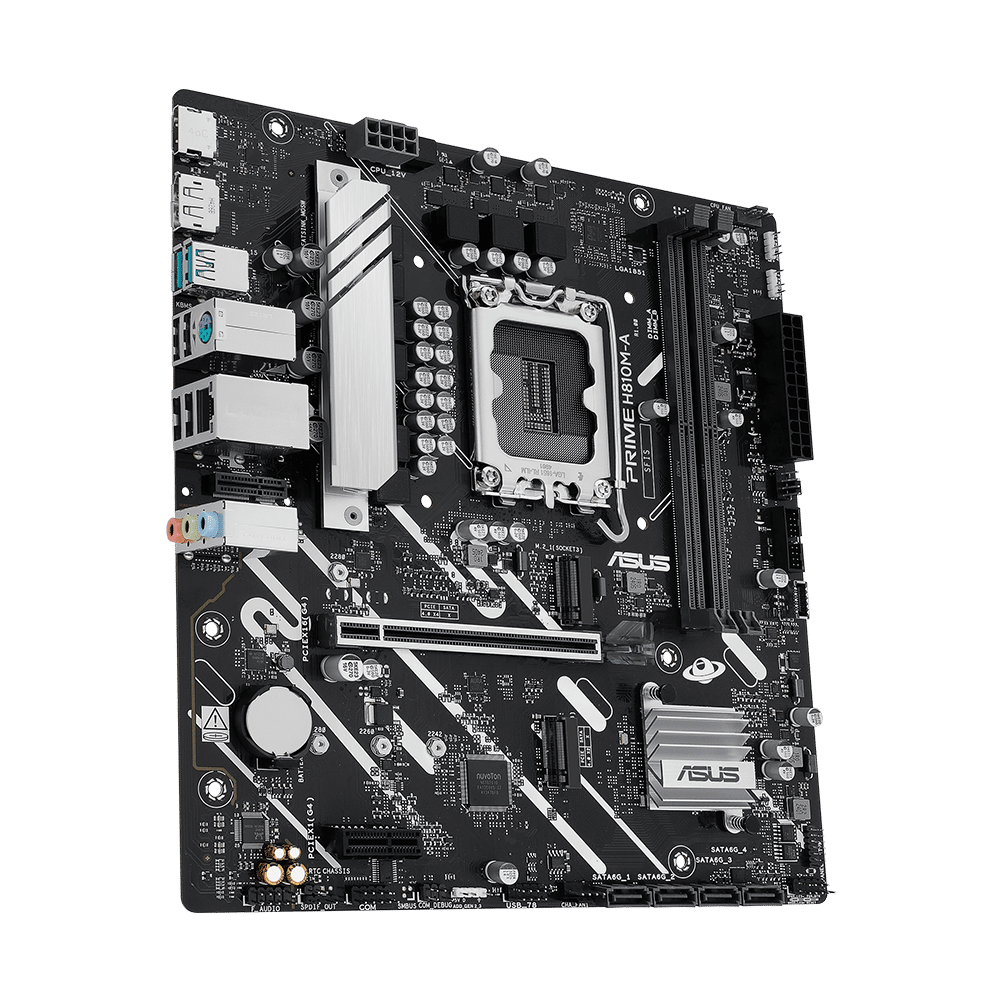

| Manufacturer Part # | PRIME H810M-A-CSM |
| Motherboard Form Factor | Micro ATX |
| Chipset | H810 |
| Socket | LGA1851 |
| Processor Support | Intel® Core™ Ultra Processors (Series 2) |
| Memory Slots | 2 x DIMM Slots |
| Memory Speed | DDR5 – up to 6400MT/s |
| Memory Type | 128GB Max, Unbuffered / Non-ECC UDIMM, CUDIMM |
| Graphic Ports | 1 x DisplayPort 1.4, 1 x HDMI 2.1 |
| Motherboard Expansion Slots | 1 x PCIe 4.0 x1, 1 x PCIe 4.0 x16 |
| Storage | 4 x SATA 6Gb/s ports, 1 x M.2 (2242/2260/2280) PCIe 4.0 x2, 1 x M.2 (2280) PCIe 4.0 x4 |
| Storage Note | N/A |
| Onboard RAID | N/A |
| Network | 1 x Intel® 1Gb Ethernet port (RJ45) |
| Audio | Line In, Line Out, Mic In, Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Front USB Header(s) | 1 x USB 2.0 connector (2 total ports), 1 x USB 5Gbps connector supports USB-C, 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports |
| Rear USB Ports | 4 x USB 2.0 (Type-A), 2 x USB 10Gbps (Type-A) |
| Fan Connectors | 1 x CPU Fan Connector (1 x 4-pin), 2 x Chassis Fans (2 x 4-pin) |
| BIOS | 256 (128+128) Mb Flash ROM, UEFI AMI BIOS |
| Operating System Support | Windows 10 64-bit (21H2 & later), Windows 11 (22H2 & later) |
| Manufacturer Warranty | 3 Year |
$125.58
