| Shipping Weight | 2.45 lbs |
|---|---|
| Shipping Dimensions | 13.1 × 10.5 × 2.55 in |
| Manufacturer | ASUS |

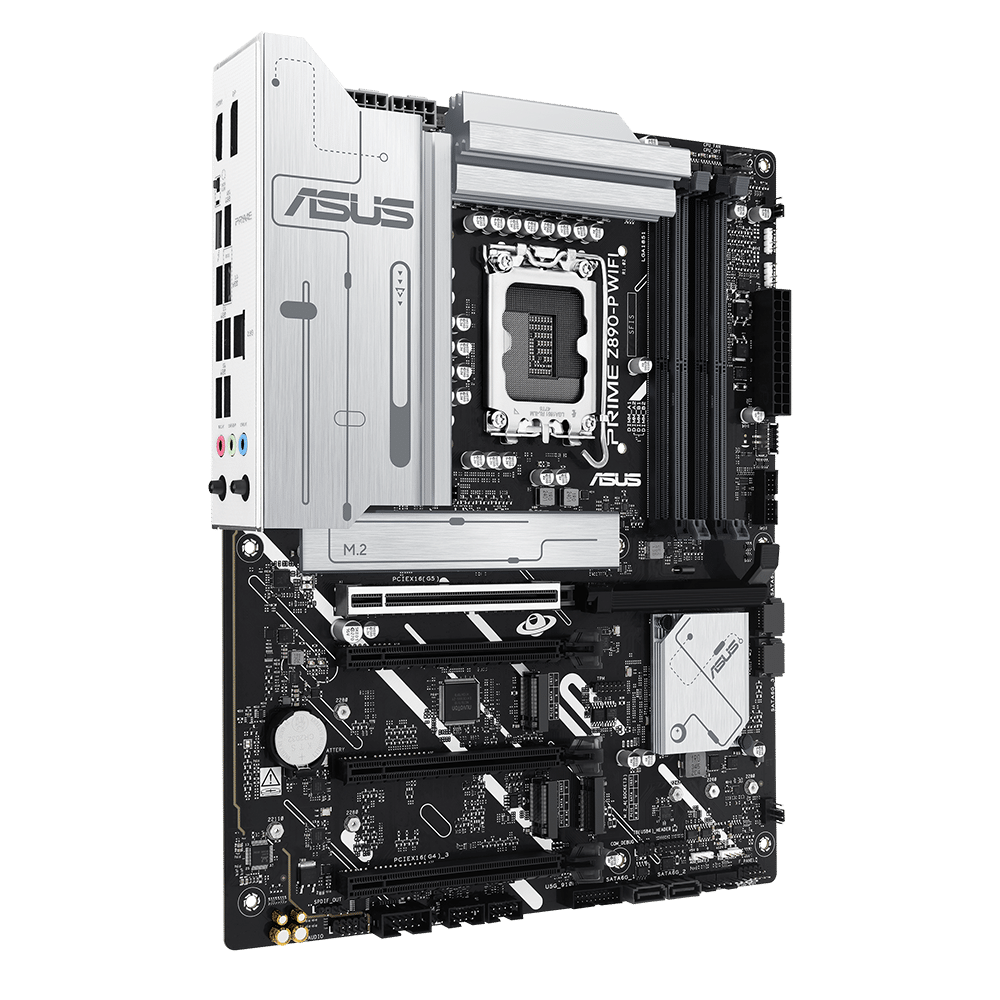

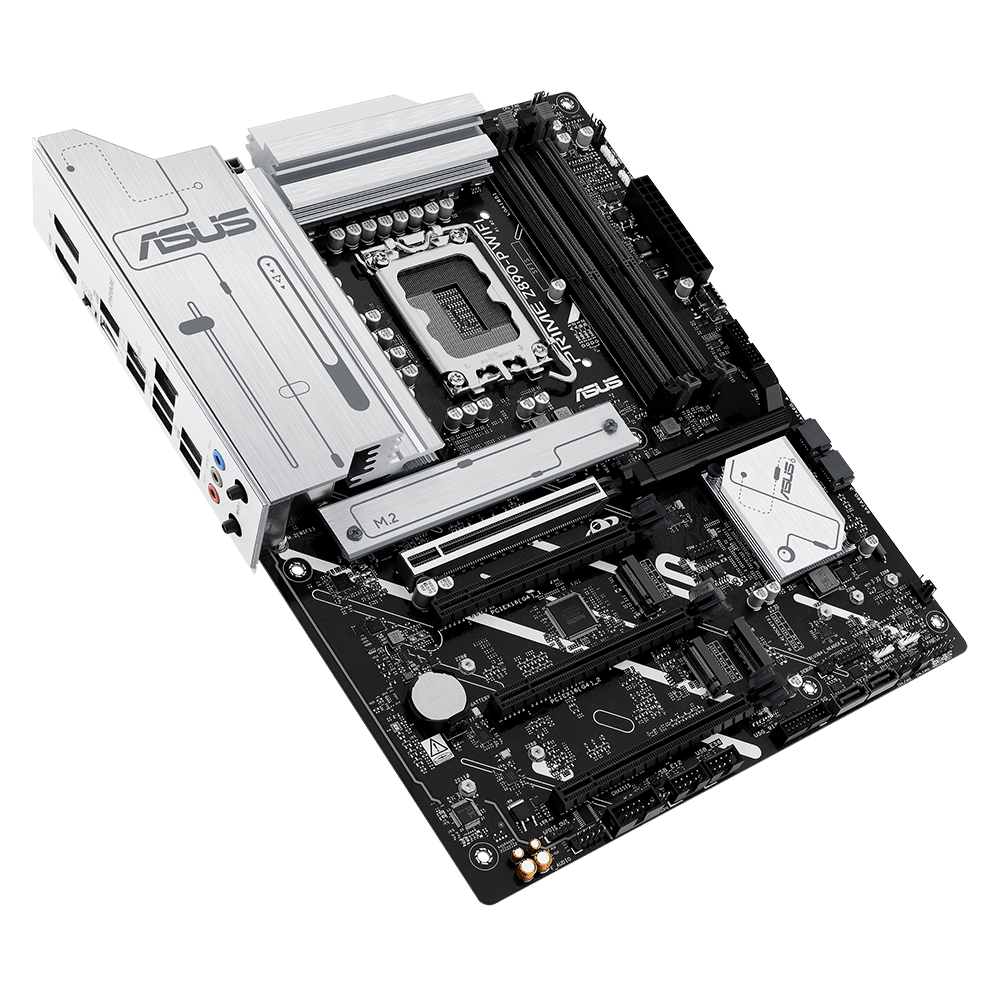

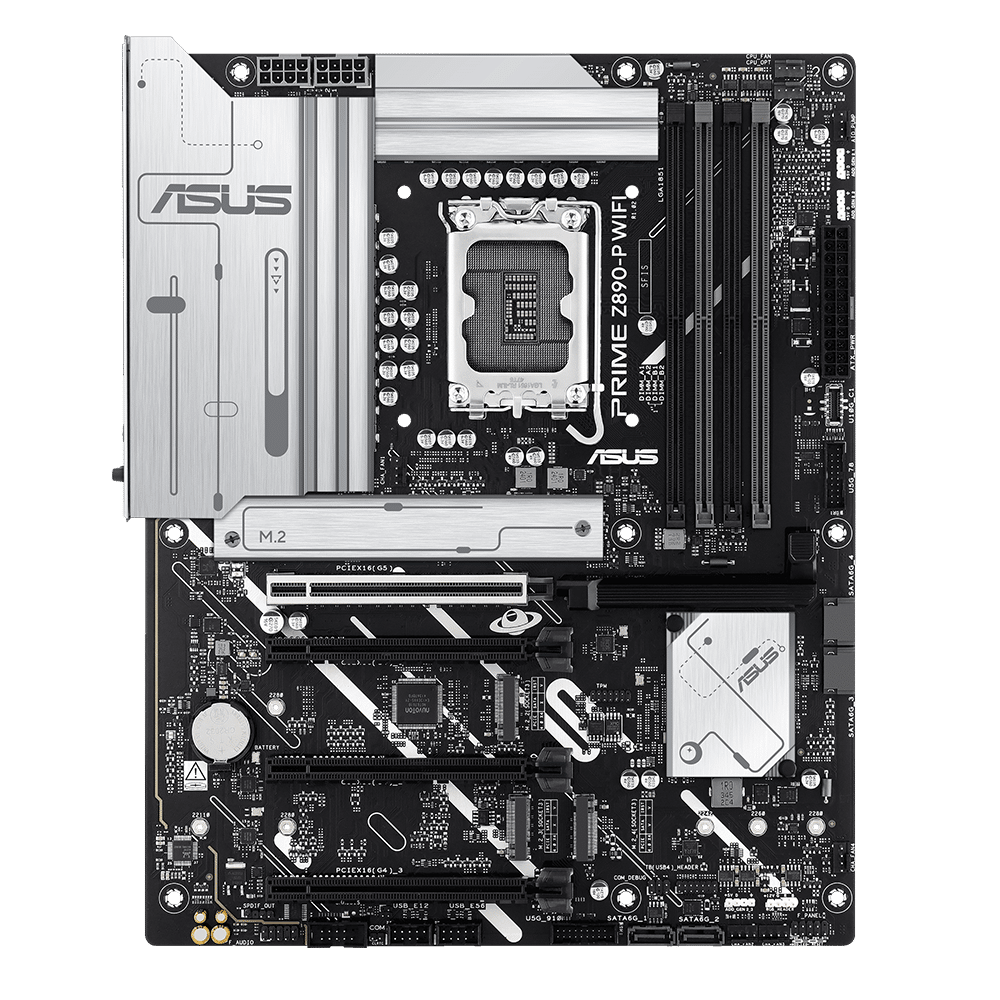

| Manufacturer Part # | PRIME Z890-P WIFI |
| Motherboard Form Factor | (30.5 cm x 24.4 cm), 12 in x 9.6 in, ATX |
| Chipset | Intel® Z890 Chipset |
| Socket | LGA1851 |
| Processor Support | Intel® Core™ Ultra Processors (Series 2), Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Memory Slots | 4 x DIMM Slots, Dual Channel |
| Memory Speed | DDR5 – Supports up to 8666+MT/s (OC), Supports Intel® Extreme Memory Profile (XMP) memory module |
| Memory Type | *Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, CUDIMM, Non-ECC, Un-buffered ,Clocked Unbuffered DIMM, Up to 192GB |
| Graphic Ports | 1 x DisplayPort 1.4, 1 x HDMI 2.1, 1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort 2.1 and Thunderbolt™ video outputs, In ThunderboltTM4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs |

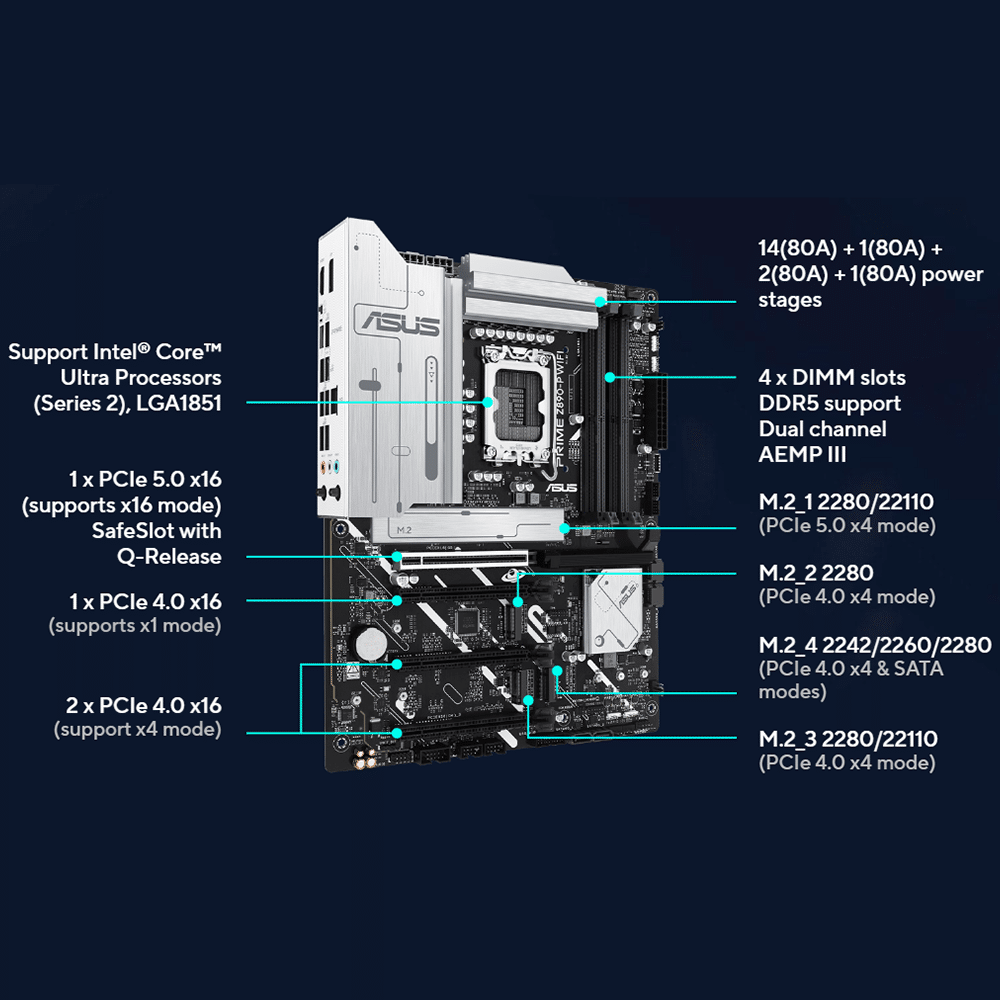

| Motherboard Expansion Slots | 1 x PCIe 4.0 x16 slot (supports x1 mode) via chipset, 1 x PCIe 5.0 x16 slot via CPU, 2 x PCIe 4.0 x16 slots (support x4 mode) via chipset |
| Storage | 4 x SATA 6Gb/s ports, 1 x M.2 Slot 1, 2280/22110 (supports PCIe 5.0 x4 mode) via CPU, 1 x M.2 Slot 2, 2280 (supports PCIe 4.0 x4 mode) via CPU, 1 x M.2 Slot 3, 2280/22110 (supports PCIe 4.0 x4 mode) via Chipset, 1 x M.2 Slot 4, 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) via Chipset |
| Storage Note | Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5 |
| Onboard RAID | Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. |
| Network | 1 x Realtek 2.5Gb Ethernet, ASUS LANGuard |
| Wireless | Bluetooth® v5.4, For Windows 10, please note that no driver is available, please refer to the Wi-Fi chipset vendor's website for details, For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, up to 2.9Gbps transfer rate via Wi-Fi 7 160MHz bandwidth, Wi-Fi 7 2×2 (802.11be) Supports 2.4/5/6GHz frequency band and 160MHz bandwidth, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E |
| Audio | Line In, Line Out, Mic In, Realtek 7.1 Surround Sound High Definition Audio CODEC, A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output, Supports up to 24-Bit/192 kHz playback, Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| Front USB Header(s) | 1 x USB 10Gbps connector (supports USB Type-C®), 2 x USB 2.0 headers support 4 additional USB 2.0 ports, 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports, USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth., USB_E5 port, USB_E6 port and USB_E7 port share the bandwidth. |

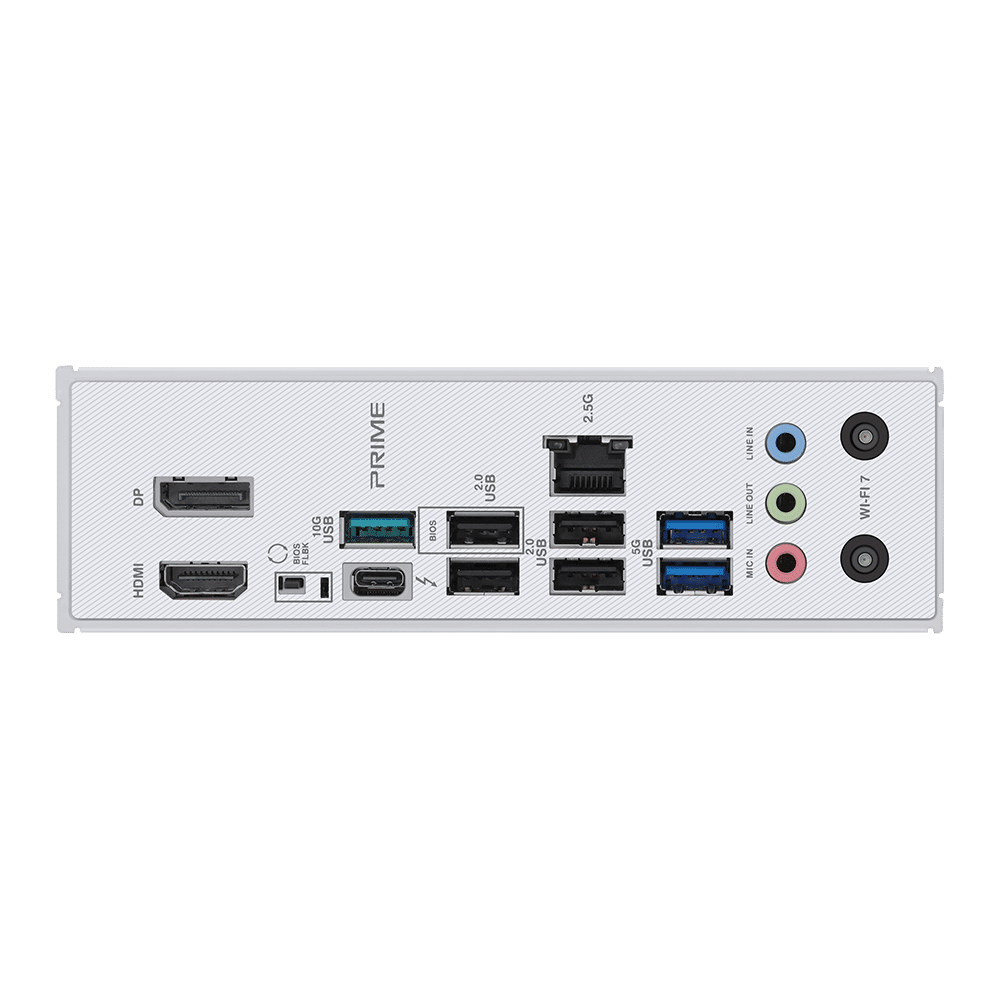

| Rear USB Ports | 1 x Thunderbolt™ 4 port (1 x USB Type-C®), 1 x USB 10Gbps port (1 x Type-A), 2 x USB 5Gbps ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A) |
| Fan Connectors | 1 x AIO_PUMP Connector (1 x 4 -pin), 1 x CPU Fan Connector (1 x 4-pin), 1 x CPU OPT Fan Connector (1 x 4-pin), 4 x 4-pin Fan Headers |
| BIOS | 256 (128+128) Mb Flash ROM, UEFI AMI BIOS, BIOS CAP Filename – PRIME Z890-P WIFI: A5575.CAP |
| Operating System Support | Windows 11 64-Bit (22H2 & later) |
| Manufacturer Warranty | 3 Year |
$241.03
