| Shipping Weight | 6.8 lbs |
|---|---|
| Shipping Dimensions | 4.4 × 12.2 × 14.5 in |
| Manufacturer | ASUS |
| Motherboard Form Factor | Micro-ATX |
| Manufacturer Part # | Pro WS B850M-ACE SE |
| Chipset | AMD B850 Chipset |
| Socket | AMD Socket AM5 |
| Processor Support | AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors and AMD EPYC™ 4005 Series Processors |
| Memory Slots | 4 x DIMM Slots |
| Memory Channels | Dual channel memory architecture |
| Memory Speed | Supports up to 5600MT/s with AMD EPYC™ 4005 Series Processors, ECC and Non-ECC Un-buffered DIMM* Dual channel memory architecture, Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM* |
| Memory Type | ECC and Non-ECC Un-buffered DIMM, max. 256GB |

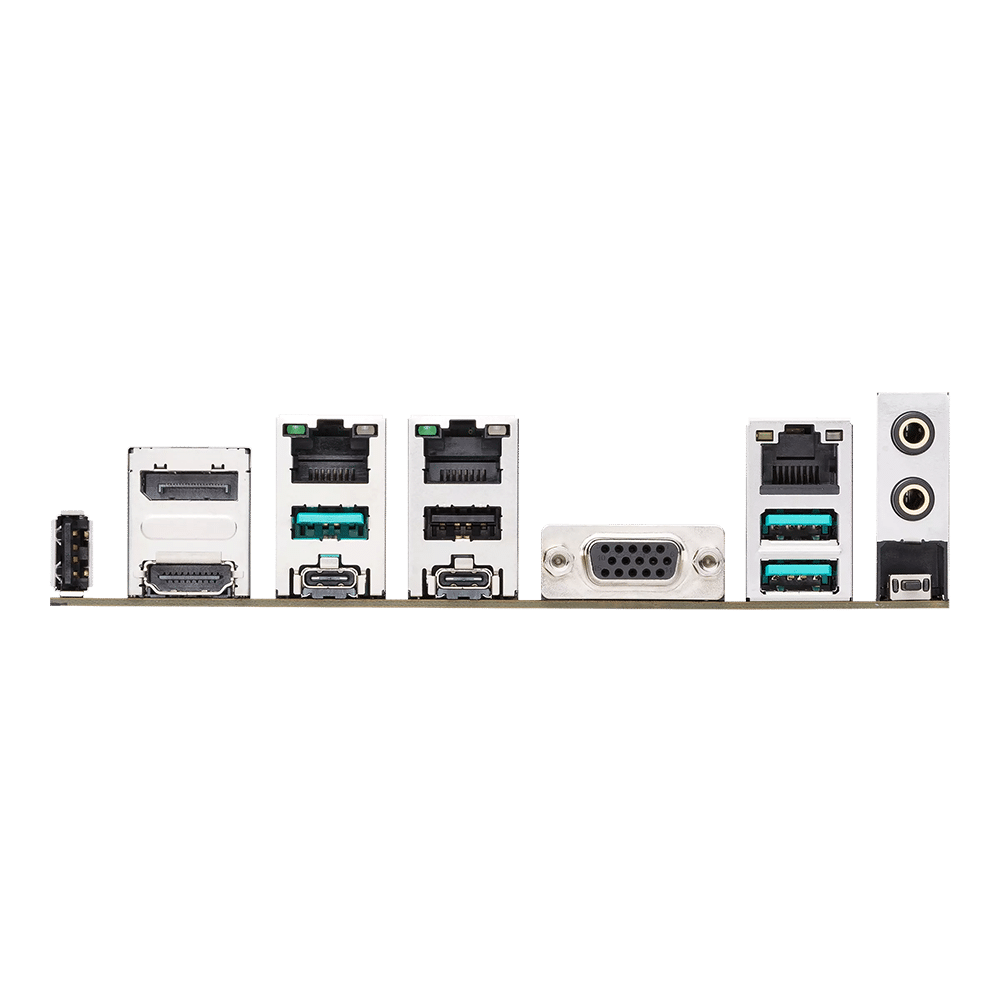

| Graphic Ports | 1 x DisplayPort 1.4, 1 x HDMI 2.1, 1 x VGA port from AST2600 |
| Motherboard Expansion Slots | 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) via AMD Ryzen™ 8000 Series Desktop Processors, 1 x PCIe 5.0 x16 slot (supports x16 mode) via AMD Ryzen™ 9000 & 7000 Series Desktop Processors and AMD EPYC™ 4005 Series Processors |
| Storage | 1 x MCIO connector (supports PCIe 4.0 x4/x2 mode), 1 x U.2 connector supports PCIe 3.0 x4 mode via an SFF-8643 adapter cable, 2 x M.2 2280 PCIe 5.0 x4 via AMD Ryzen™ 9000 & 7000 Series Desktop Processors and AMD EPYC™ 4005 Series Processors |
| Storage Note | AMD RAIDXpert2 Technology, Ryzen™ 7000 Series Processors: RAID 0/1/10, Ryzen™ 8000 Series Processors: RAID 0/1, Ryzen™ 9000 Series Processors: RAID 0/1/5/10 |
| Onboard RAID | AMD RAIDXpert2 Technology |
| Network | ASUS LANGuard, 1 x Intel® 2.5Gb Ethernet, 1 x Realtek 10Gb Ethernet, 1 x Realtek 1Gb Ethernet |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Server Management | 1 x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600) |
| Front USB Header(s) | 1 x USB 2.0 port (1 x Type-A) for BIOS FlashBack™, 1 x USB 20Gbps (supports USB Type-C®), 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports, 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports |
| Rear USB Ports | 2 x USB 2.0 port(s) (2 x Type-A), 5 x USB 10Gbps port(s) (3 x Type-A + 2 x USB Type-C®) |
| Fan Connectors | 3 x 4-pin Chassis Fan headers |
| BIOS | 512 Mb Flash ROM, UEFI AMI BIOS(text-based) |
| Operating System Support | Windows 10 64-bit (with AMD Ryzen™ Desktop Processors), Windows® 11 64-bit |
| Manufacturer Warranty | 3 Year |
$375.00
