From: $7,056.27

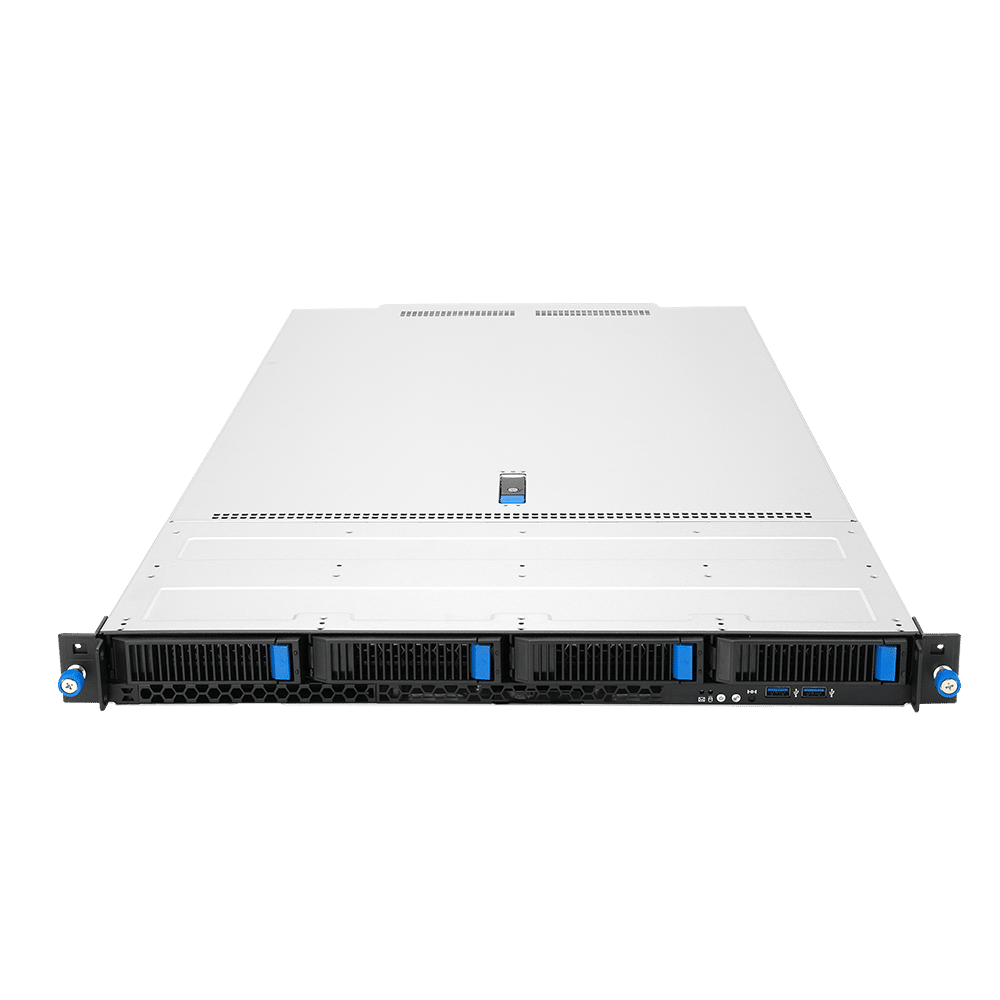

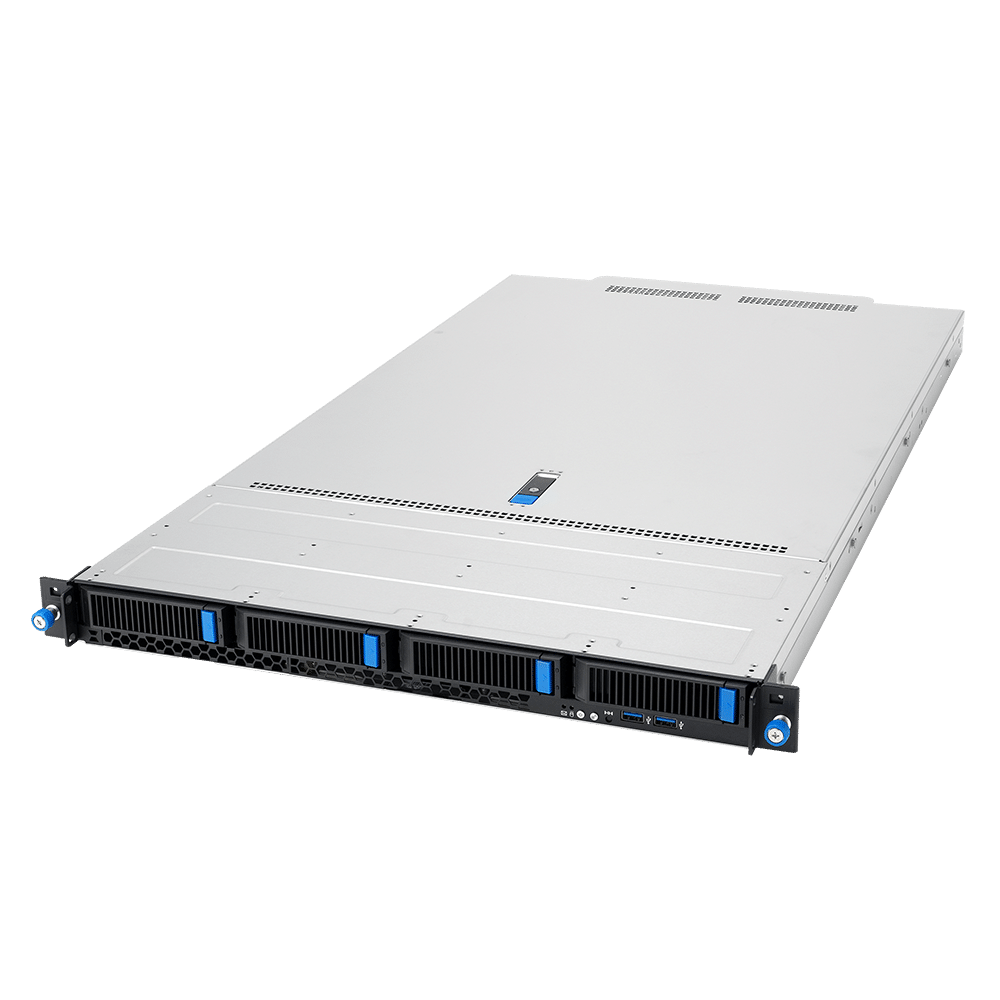

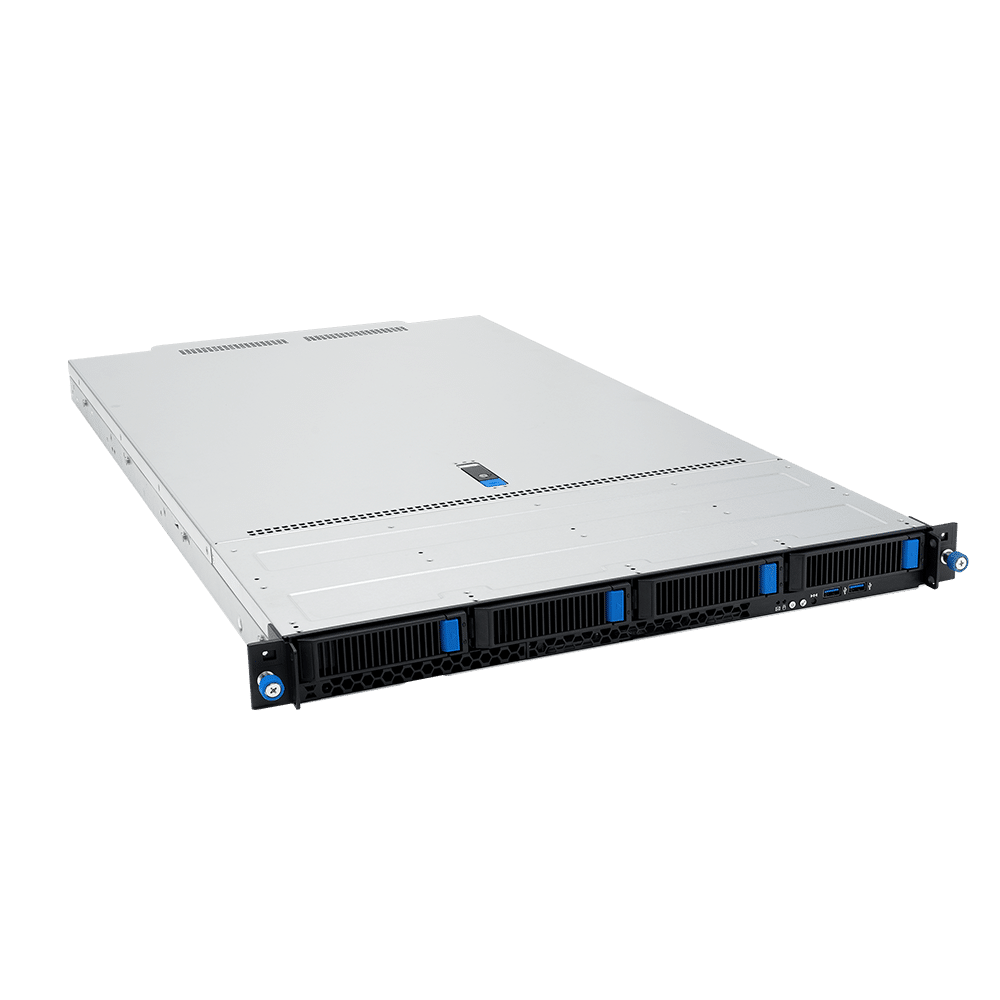

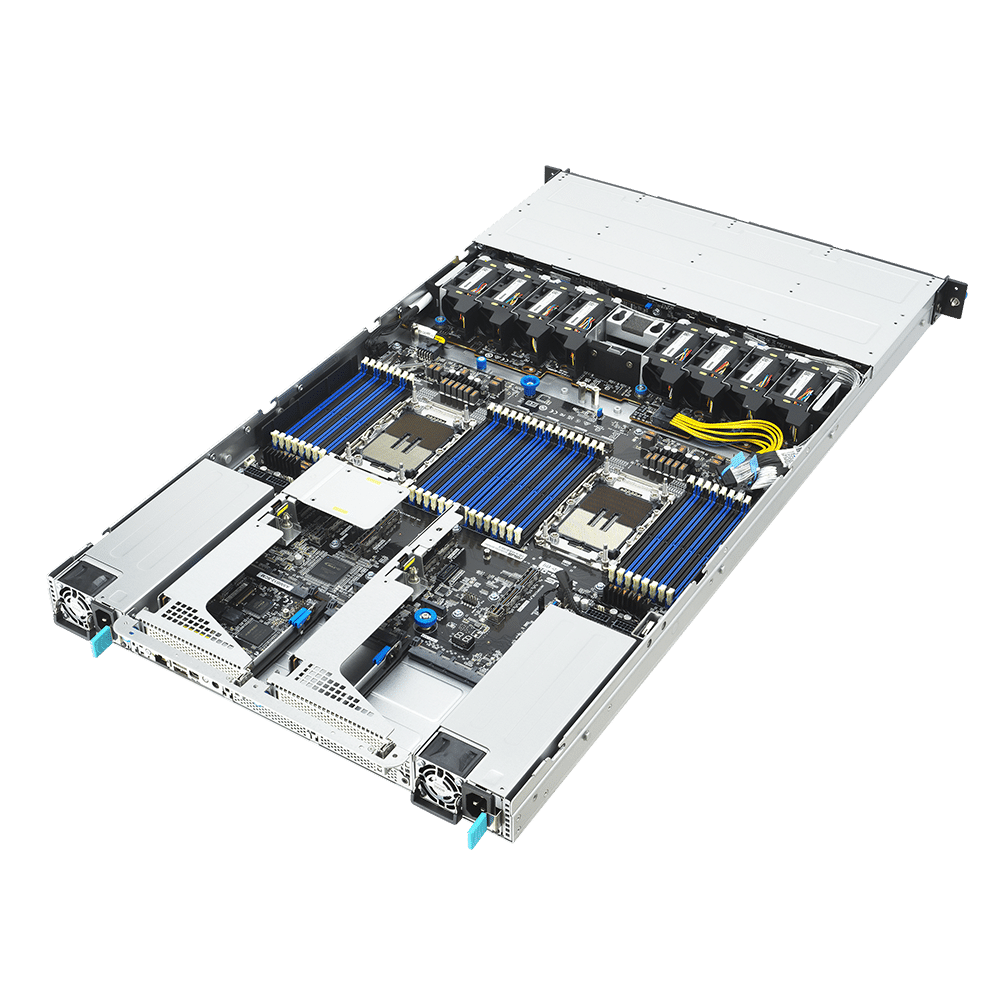

Asus 1U SATA Server (4 Drive Configuration)
Dual Intel® Xeon® 6th Generation Scalable Processors
Memory – up to 4TB DDR5 RDIMM
Intel VROC RAID via Graid supporting up to 2 x NVMe Boot Drives
LSI 8-Port SATA RAID Controller supporting up to 4 x SATA Drives
Storage – 2 x M.2 NVMe, and up to 4 x 2.5″/3.5″ Hot-Swap SATA Drives
Intel® I350-T2V2 Dual Port Gigabit LAN + 1 x RJ45 Management Port
Foot Print (1U Rackmount)
1.73″ (H) x 17.68″ (W) x 31.50″ (D)
| Shipping Weight | 75 lbs |
|---|---|
| Shipping Dimensions | 25 × 6 × 37 in |
| Product Category | Server |
| Model # | RS700-E12-RS4U-2KW10G |
| Chassis | RS700-E12-RS4U |

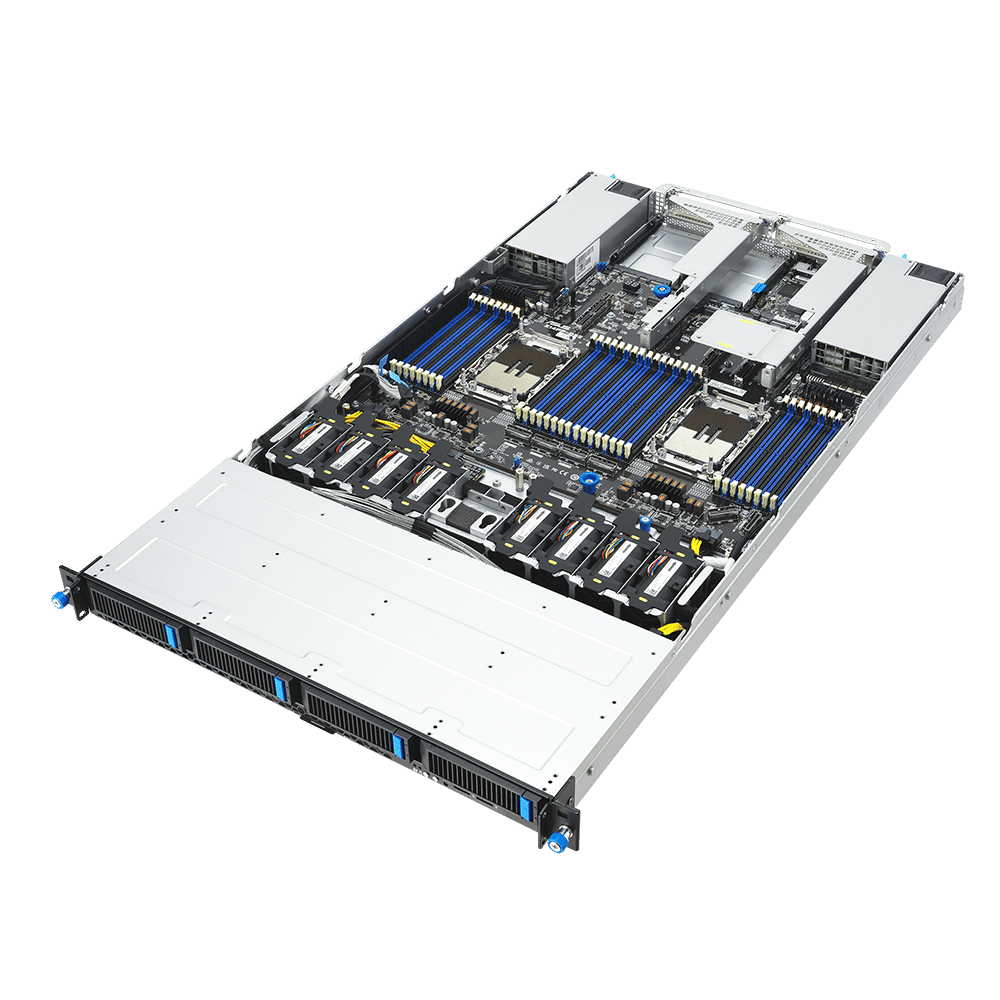

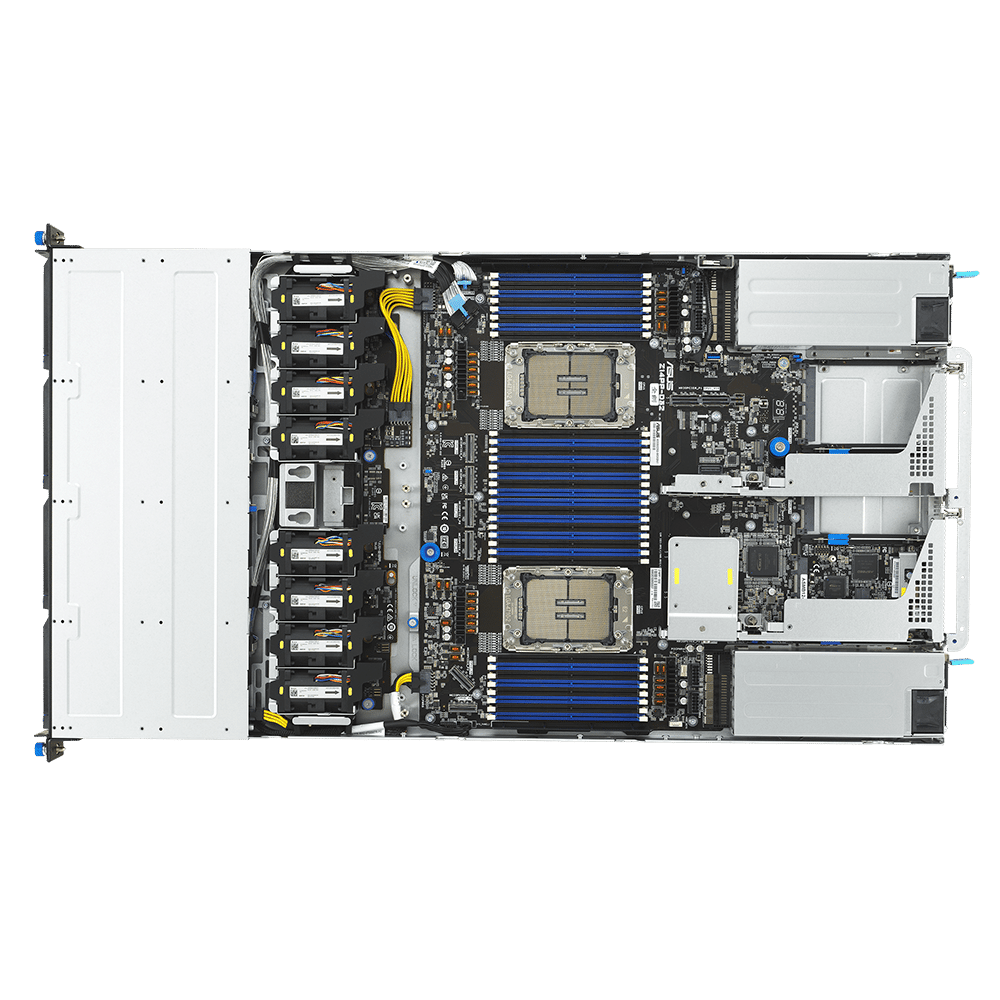

| Motherboard | ASUS Z14PP-D32 server board |
| Power Supply | 1+1 Redundant 2000W 80 PLUS Platinum PSU Rating: 100-127V~/220-240V~, 12A/10A (x2), 50/60Hz |
| Chipset | FCLGA4710 E2B, Intel® C741 Chipset |
| Processor Support | 2 x LGA 4710 Intel® Xeon® 6 processors |
| Memory Support | up to 4TB, 32 x DDR5 DIMM slots, 8-channel per CPU, 16 DIMM per CPU, DDR5 6400/5600 RDIMM |
| Storage | 2 x M.2 Gen5 x2 (2280/2260)(VROC required for RAID), 4 x 2.5"/3.5" hot-swap drive bays support 4 x SATA drives |
| Onboard RAID | N/A |
| Graphic Ports | Aspeed AST2600 64MB via Mini DisplayPort |
| Expansion Slots | 2 x OCP3.0 Gen5 x16 (SFF), 2 x PCIE Gen5 x16 (FHHL) |
| External Bays | N/A |

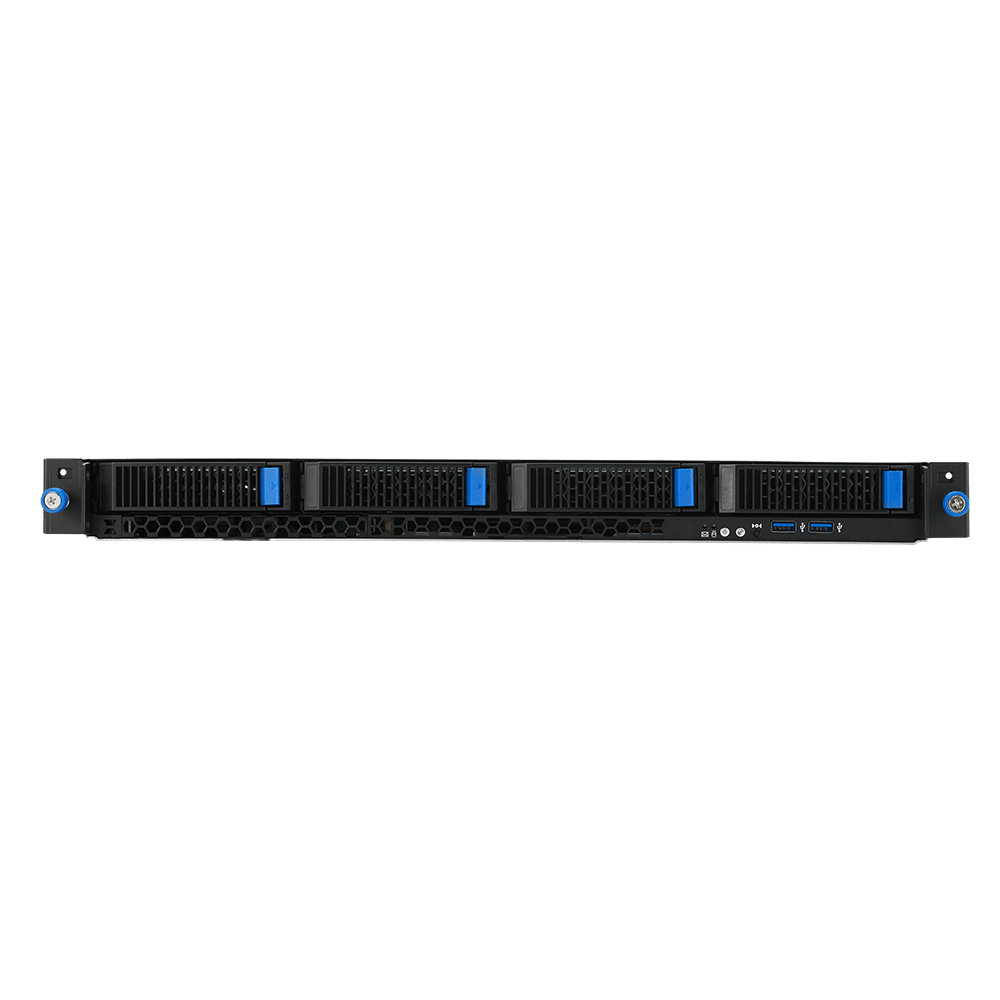

| Internal Storage Bays | 4 x 2.5"/3.5" Hot-Swap Storage Device Bays |
| Network | 1 x Management LAN Port, 2 x RJ-45 Gigabit Port via Intel I350-T2V2 with optional upgrade |
| Front USB Ports | 2 x USB 3.2 Gen 1 (Type-A) |

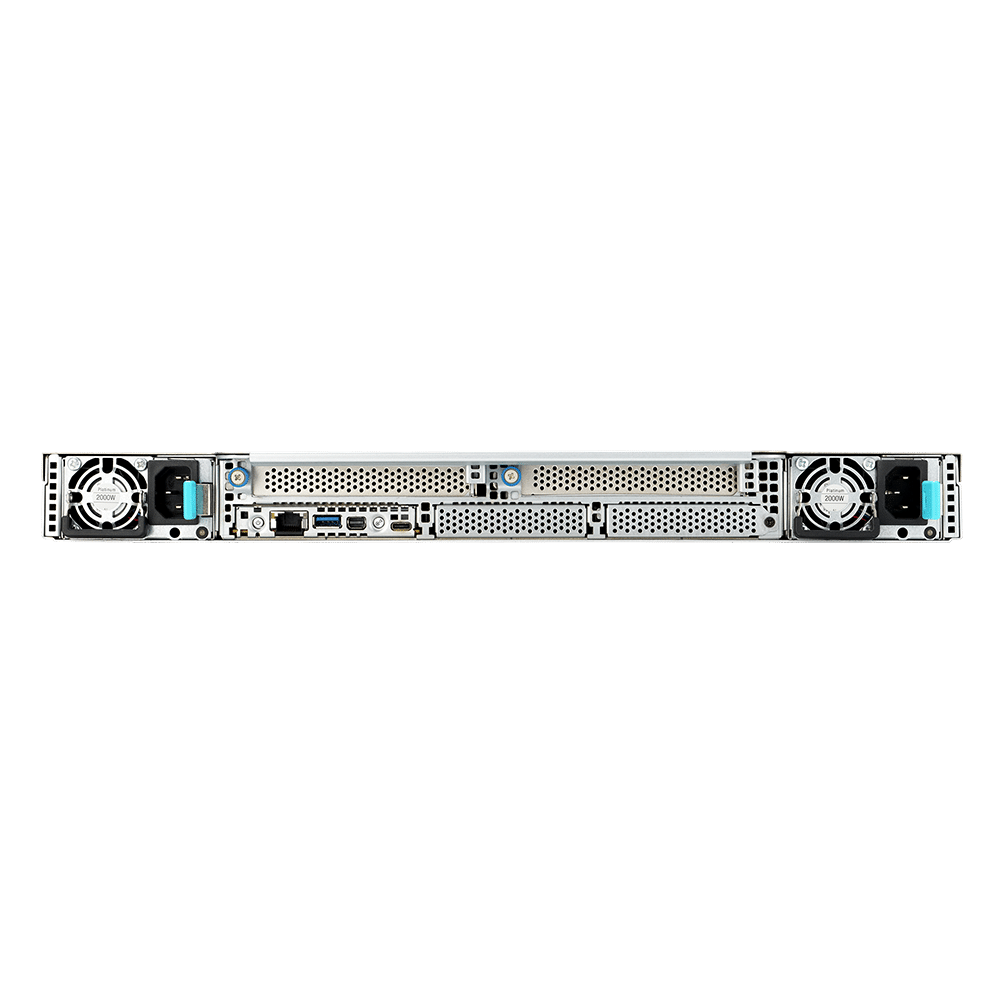

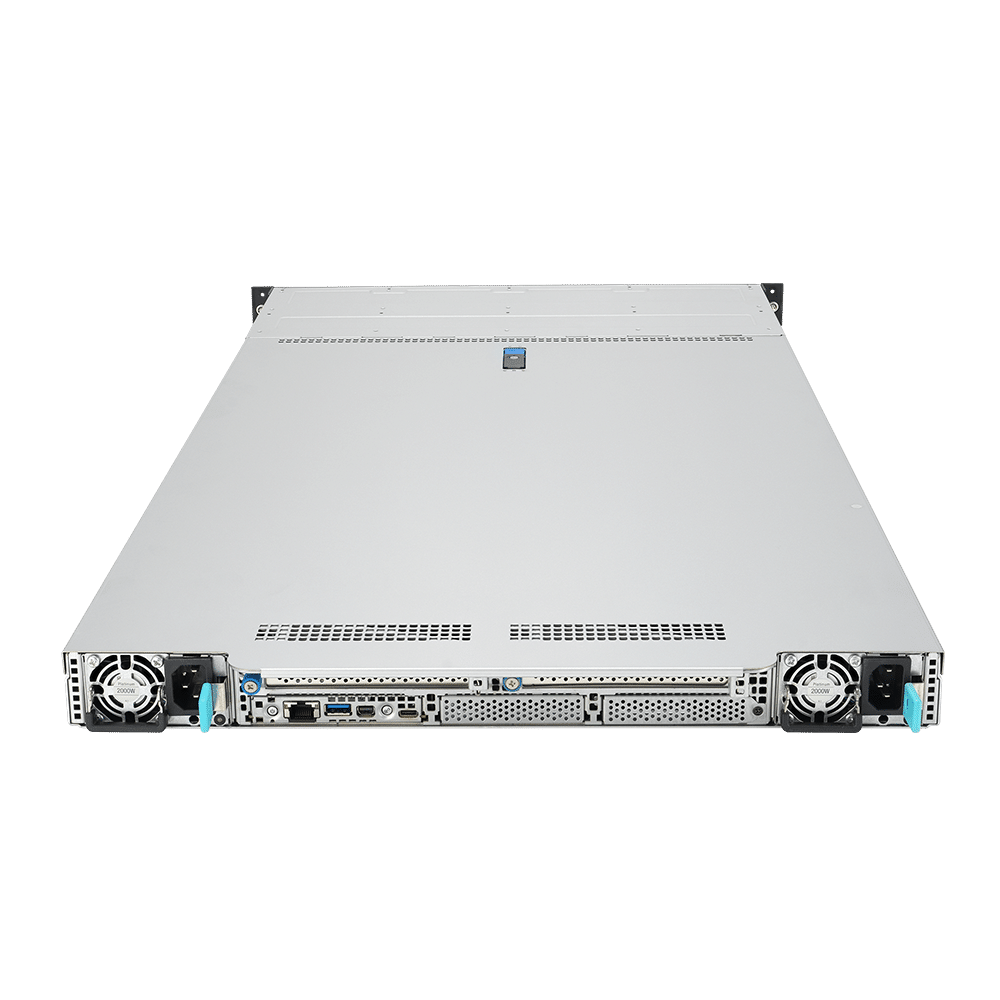

| Additional Rear Ports | 1 x RJ-45 Management LAN port, 2 x USB 3.2 Gen 1 (Type-A) |
| Operating System Support | Windows Server 2025 |
| Physical Product Dimensions | 17.68” x 1.73” x 31.5” (1U) |
| Included Railkit | 1 x 1U full-pull ball bearing rail kit 90SKR000-M0AAN0 |
| Net Weight | 40.11 lbs |
| Warranty | Included – 1 Year Depot Warranty, Optional Extended Depot Warranty Support |
