| Shipping Weight | 4.2 lbs |
|---|---|
| Shipping Dimensions | 13.9 × 10.8 × 2.7 in |
| Manufacturer | ASUS |

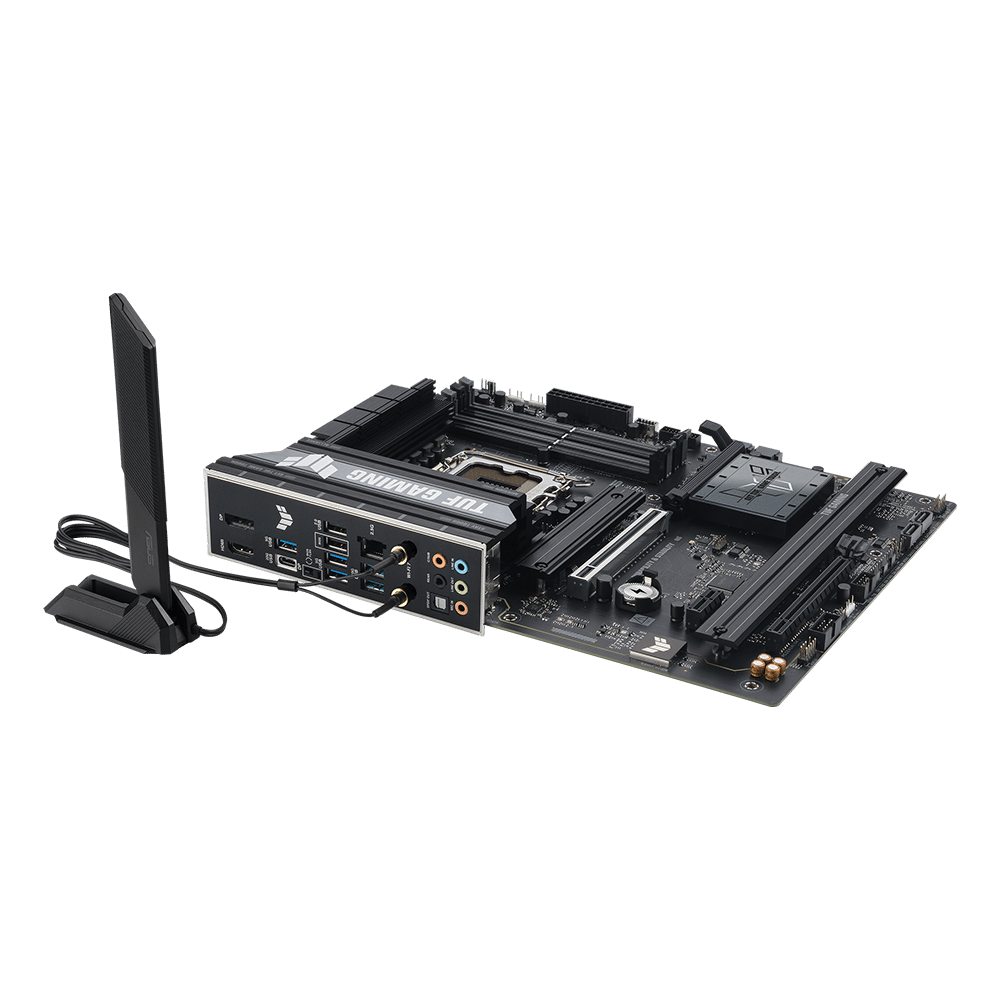

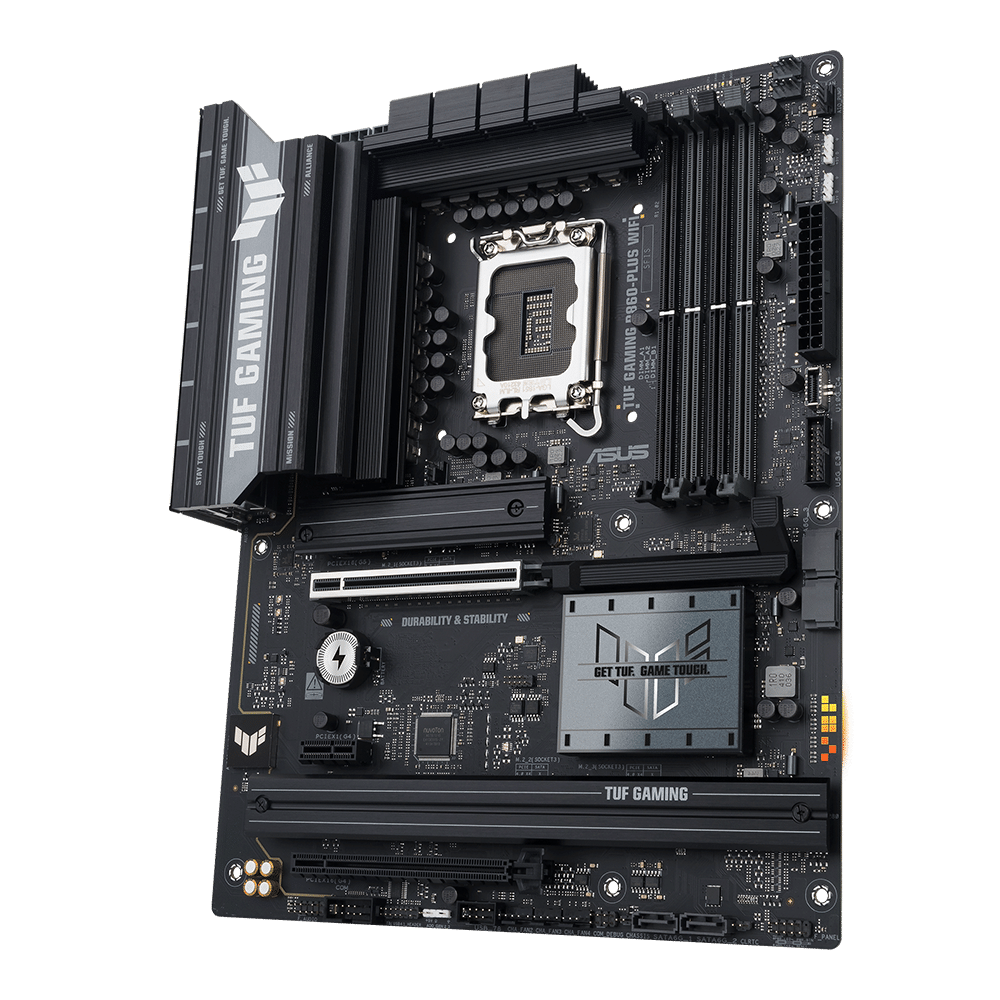

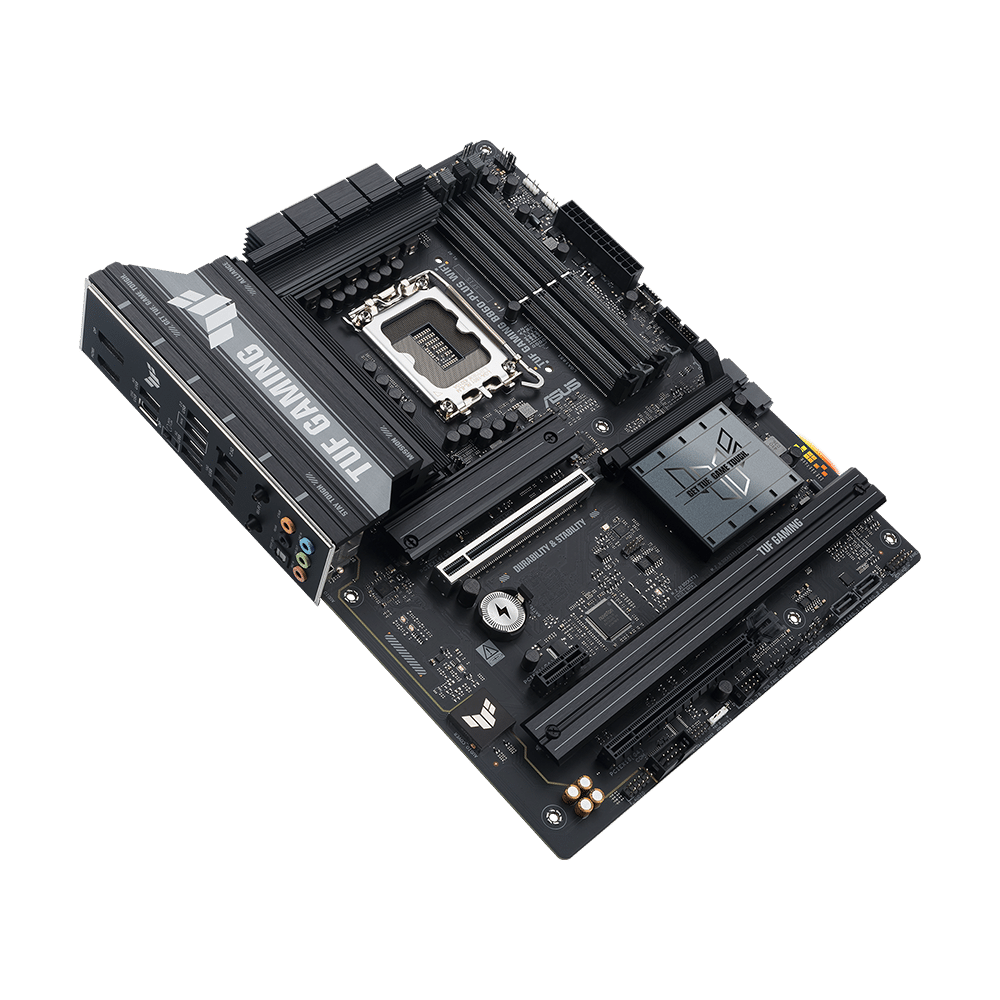

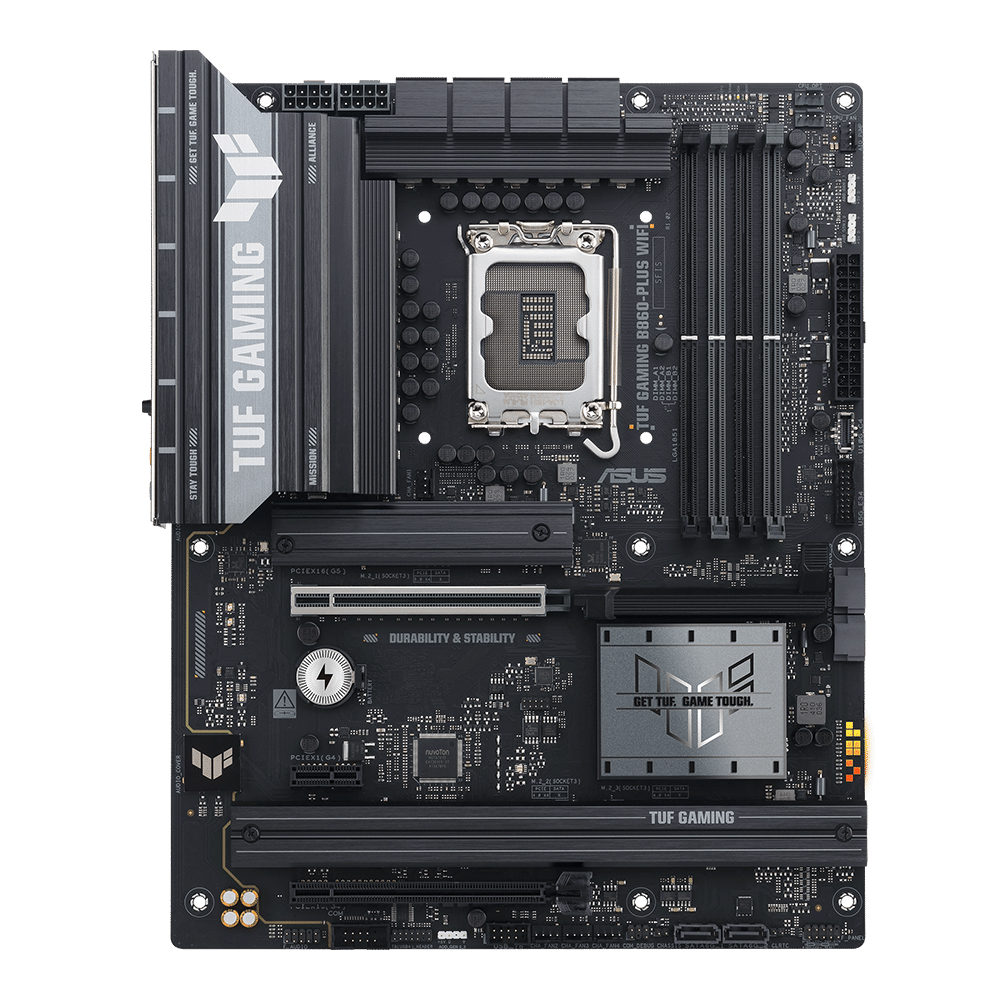

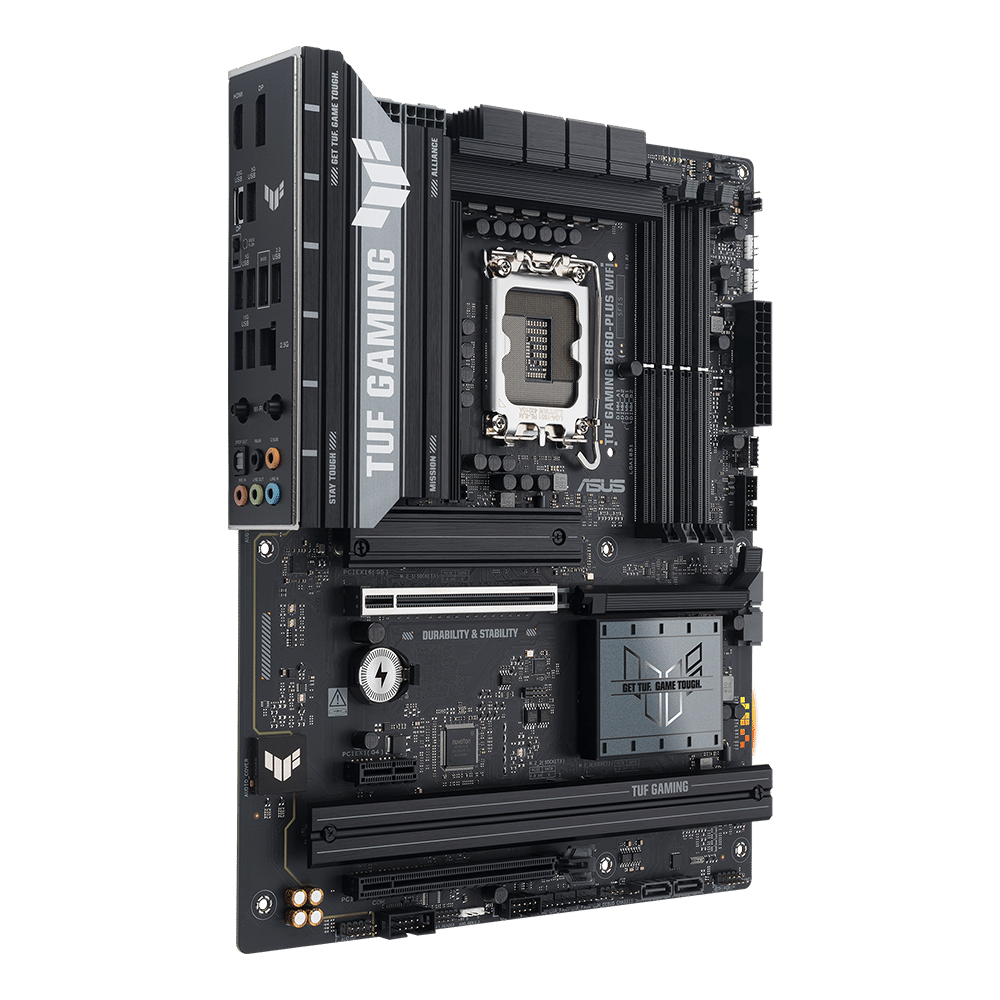

| Manufacturer Part # | TUF GAMING B860-PLUS WIFI |
| Motherboard Form Factor | ATX |
| Chipset | Intel® B860 |
| Socket | LGA1851 |
| Processor Support | Intel® Core™ Ultra Processors (Series 2) |
| Memory Slots | 4 x DIMM Slots, Dual Channel |
| Memory Speed | Support up to 8666+ MT/s (OC), Supports Intel® Extreme Memory Profile (XMP) memory module |
| Memory Type | *Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM), Up to 192GB |
| Graphic Ports | 1 x DisplayPort 1.4, 1 x HDMI 2.1, 1 x USB 20Gbps port (USB Type-C®) supports DisplayPort 1.4 video output |
| Motherboard Expansion Slots | 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x1 slot, PCIEX16(G4) shares bandwidth with PCIEX1(G4). When PCIEX1(G4) runs at PCIe x1 mode, PCIEX16(G4) will only run at PCIe x2 mode. |
| Storage | 4 x SATA 6Gb/s ports, 1 x M.2 (2242/2260/2280) PCIe 4.0 x4, 1 x M.2 (2280) PCIe 5.0 x4, 1 x M.2 (2280/22110) PCIe 4.0 x4 |
| Storage Note | N/A |
| Onboard RAID | Intel® Rapid Storage Technology – SATA RAID 0/1/5/10 |
| Network | 1 x Realtek 2.5Gb Ethernet, Bluetooth® v5.4, For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details, For Windows 11, Wi-Fi 7 will require  24H2 or later version for full functions, Wi-Fi 7 2×2 (802.11be) 2.4/6GHz, 160MHz, up to 2.9Gbps, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E |
| Audio | C/Sub, Line In, Line Out, Mic In, Realtek 7.1 Surround Sound High Definition Audio CODEC, Rear Speaker, S/PDIF Optical |
| Front USB Header(s) | 1 x USB 10Gbps connector (supports USB Type-C®), 1 x USB 2.0 header supports 2 additional USB 2.0 ports, 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, USB Type-C® power delivery output: max. 5V/3A |
| Rear USB Ports | 2 x USB 2.0 ports (2 x Type-A), 1 x USB 20Gbps port (1 x USB Type-C®), 2 x USB 10Gbps ports (2 x Type-A), 3 x USB 5Gbps ports (3 x Type-A) |
| Fan Connectors | 1 x AIO_PUMP Connector (1 x 4 -pin), 1 x CPU Fan Connector (1 x 4-pin), 1 x CPU OPT Fan Connector (1 x 4-pin), 4 x 4-pin Chassis Fan headers |
| BIOS | 2 x 128 Mb Flash ROM, UEFI AMI BIOS, WOL by PME |
| Operating System Support | Windows 11 22H2 & later |
| Manufacturer Warranty | 3 Year |
$228.10
