| Shipping Weight | 4.4 lbs |
|---|---|
| Shipping Dimensions | 2.9 × 10.9 × 13.9 in |
| Manufacturer | ASUS |
| Manufacturer Part # | TUF GAMING Z890-PLUS WIFI |
| Motherboard Form Factor | ATX |
| Chipset | Intel® Z890 |
| Socket | LGA1851 |
| Processor Support | Intel® Core™ Ultra Processors (Series 2) |
| Memory Slots | 4 x DIMM Slots, Dual Channel |
| Memory Speed | Support up to 9066+MT/s (OC), Supports Intel® Extreme Memory Profile (XMP) memory module |
| Memory Type | *Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM), Up to 192GB |
| Graphic Ports | 1 x DisplayPort 1.4, 1 x HDMI 2.1, 1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort 2.1 and Thunderbolt™ video outputs, 1 x USB 20Gbps port (USB Type-C®) supports DisplayPort 1.4 video output |
| Motherboard Expansion Slots | 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x 4, 2 x PCIe 4.0 x1 slots |
| Storage | 4 x SATA 6Gb/s ports, 1 x M.2 (2242/2260/2280) PCIe 4.0 x4 & SATA mode, 1 x M.2 (2242/2260/2280) PCIe 5.0 x4, 1 x M.2 (2280) PCIe 4.0 x4, 1 x M.2 (2280/22110) PCIe 4.0 x4 |
| Storage Note | N/A |
| Onboard RAID | Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5 |
| Network | 1 x Intel® 2.5Gb Ethernet port, TUF LANGuard |
| Wireless | Bluetooth® v5.4, For Windows 10, please note that no driver is available, please refer to the Wi-Fi chipset vendor's website for details, For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Wi-Fi 7 2×2 (802.11be) Supports 2.4/5/6GHz frequency band, 160MHz bandwidth, up to 2.9 Gbps, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E |
| Audio | C/Sub, Line In, Line Out, Mic In, Rear Speaker, 1 x Optical S/PDIF out port, 5 x Audio jacks, Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC |
| Front USB Header(s) | 1 x USB 20Gbps connector (supports USB Type-C®), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports, USB Type-C® power delivery output: max. 5V/3A |

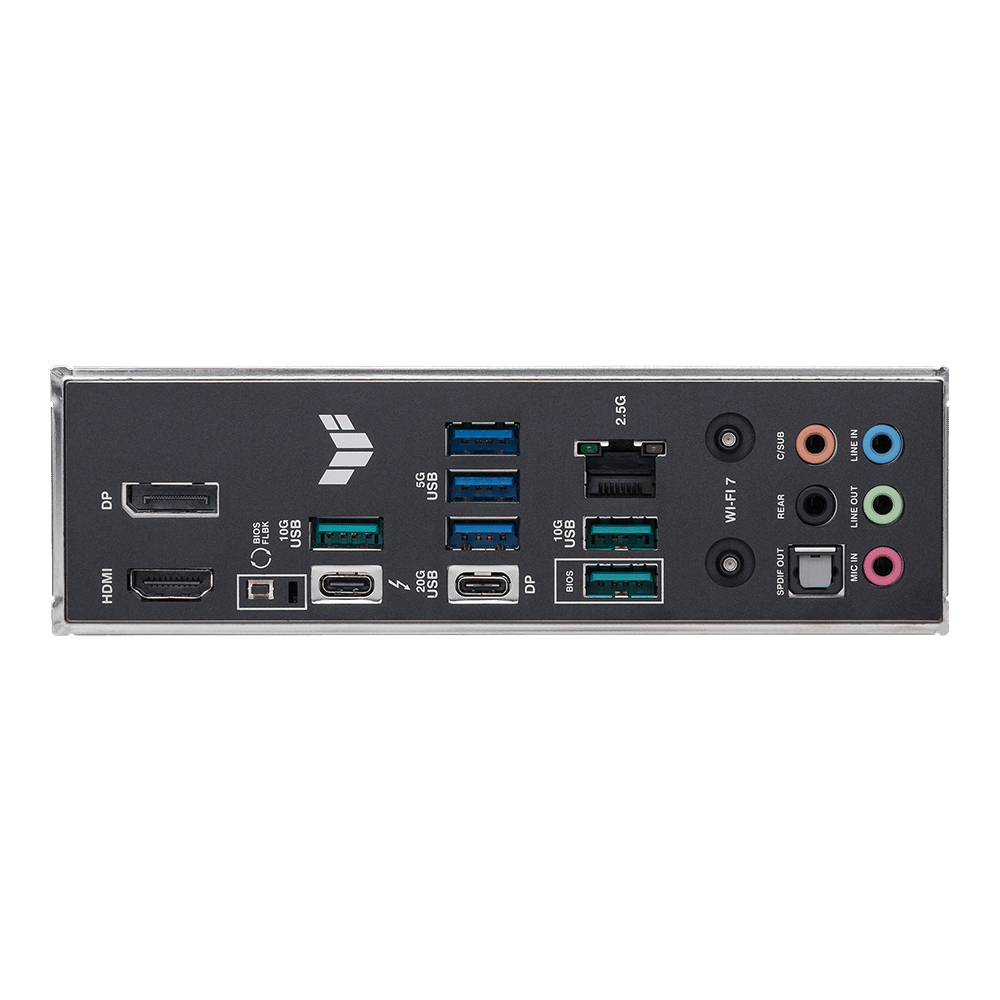

| Rear USB Ports | 1 x Thunderbolt™ 4 port (1 x USB Type-C®), 1 x USB 20Gbps port (1 x USB Type-C®), 3 x USB 10Gbps ports (3 x Type-A), 3 x USB 5Gbps ports (3 x Type-A) |
| Fan Connectors | 1 x AIO_PUMP Connector (1 x 4 -pin), 1 x CPU Fan Connector (1 x 4-pin), 1 x CPU OPT Fan Connector (1 x 4-pin), 4 x 4-pin Chassis Fan headers |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, WOL by PME |
| Operating System Support | Windows 11 (22H2 & later) |
| Manufacturer Warranty | 3 Year |
$335.25
