| Shipping Weight | 3 lbs |
|---|---|
| Shipping Dimensions | 14 × 14 × 3 in |
| Manufacturer | Supermicro |
| Motherboard Form Factor | mATX |

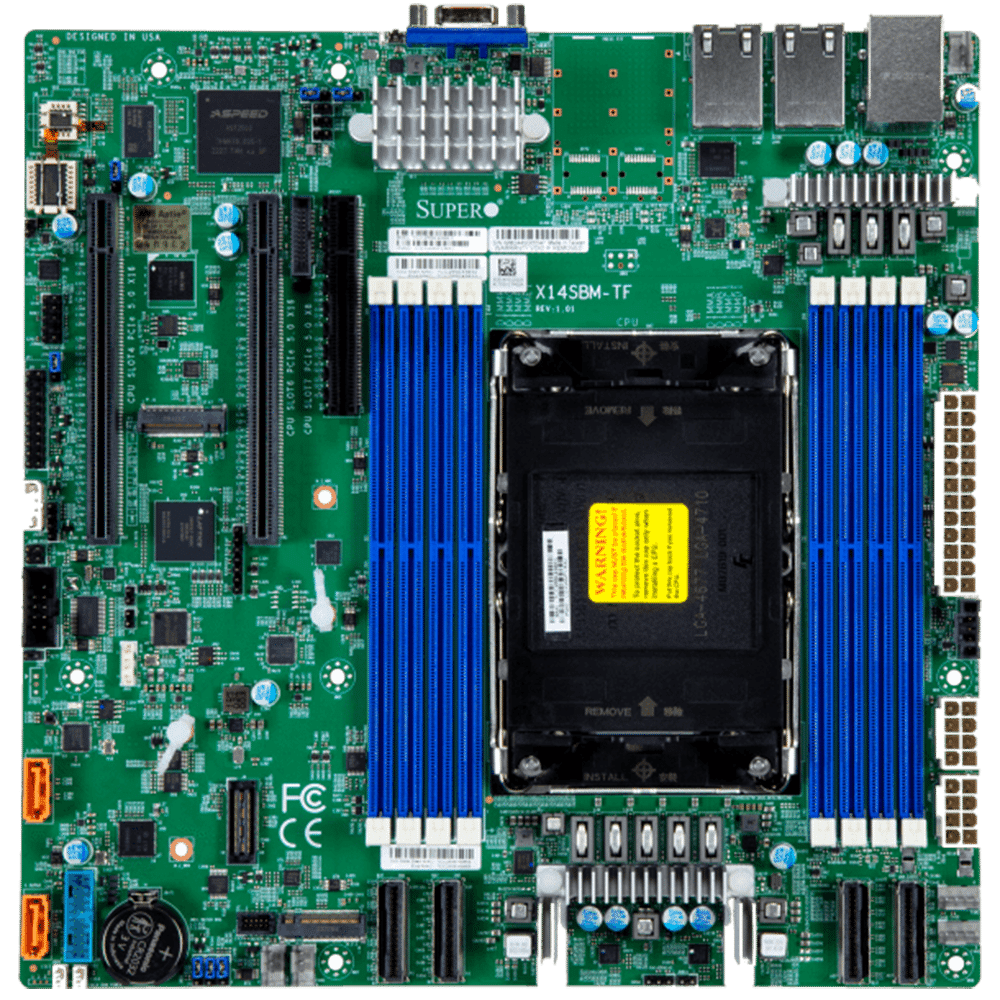

| Manufacturer Part # | MBD-X14SBM-TF |
| Chipset | Intel® SoC |
| Socket | LGA-4710, Single Socket E2 |
| Processor Support | *BIOS 1.2 or above is required to support Intel® Xeon® 6700/6500-series processors with P-cores, Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores, Supports up to 350W TDP CPUs |
| Memory Slots | 8 x DIMM Slots, Up to 1TB 6400MT/s ECC DDR5 RDIMM |
| Memory Channels | 2 Channels |
| Memory Speed | up to 8000 MT/s in eight DIMM slots |
| Memory Type | 3DS RDIMM/MRDIMM DDR5 ECC, Intel® Xeon® 6700-series processors with P-cores is required to support MRDIMM, Up to 2TB 6400MT/s ECC DDR5 3DS RDIMM |
| Graphic Ports | 1 x VGA D-Sub Connector |
| Motherboard Expansion Slots | 1 x PCIe 5.0 x8 slot, 2 x PCIe 5.0 x16 slots, 4 x PCIe 5.0 x8 via MCIO Connector slots |
| Storage | 2 x M.2 PCIe 5.0 x2 slots (M-key 2280/22110), 2 x SATA (6Gbps) via ASMediaASM1061 |
| Storage Note | N/A |
| Onboard RAID | N/A |
| Network | 1 x RJ45 Dedicated IPMI LAN port, Dual LAN with 10GBase-T with Intel® X710-AT2 |
| Server Management | 1 x RJ45 Dedicated IPMI LAN port |
| Front USB Header(s) | 2 x USB 3.2 Gen 1 ports (Via Header), 4 x USB 2.0 Ports (Via Header) |
| Rear USB Ports | 2 x USB 3.2 Gen1 ports |
| Fan Connectors | 5 x Chassis Fans (5 x 4-pin) |
| BIOS | ACPI 6.5 SMBIOS 3.7 or later UEFI 2.9, AMI 64MB UEFI |
| Operating System Support | RHEL 10.0, RHEL 9.4, Windows Server 2025 |
| Manufacturer Warranty | 3 Year |
$829.41
