$5,117.50

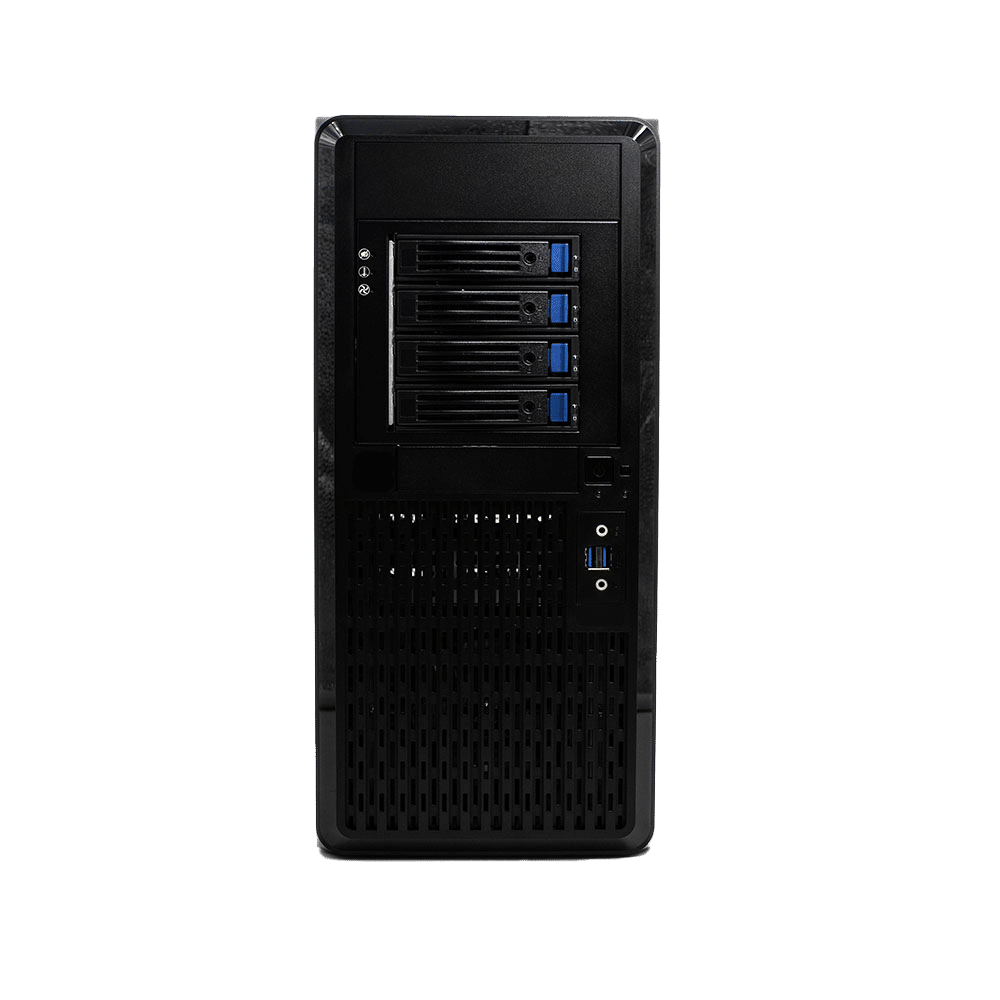

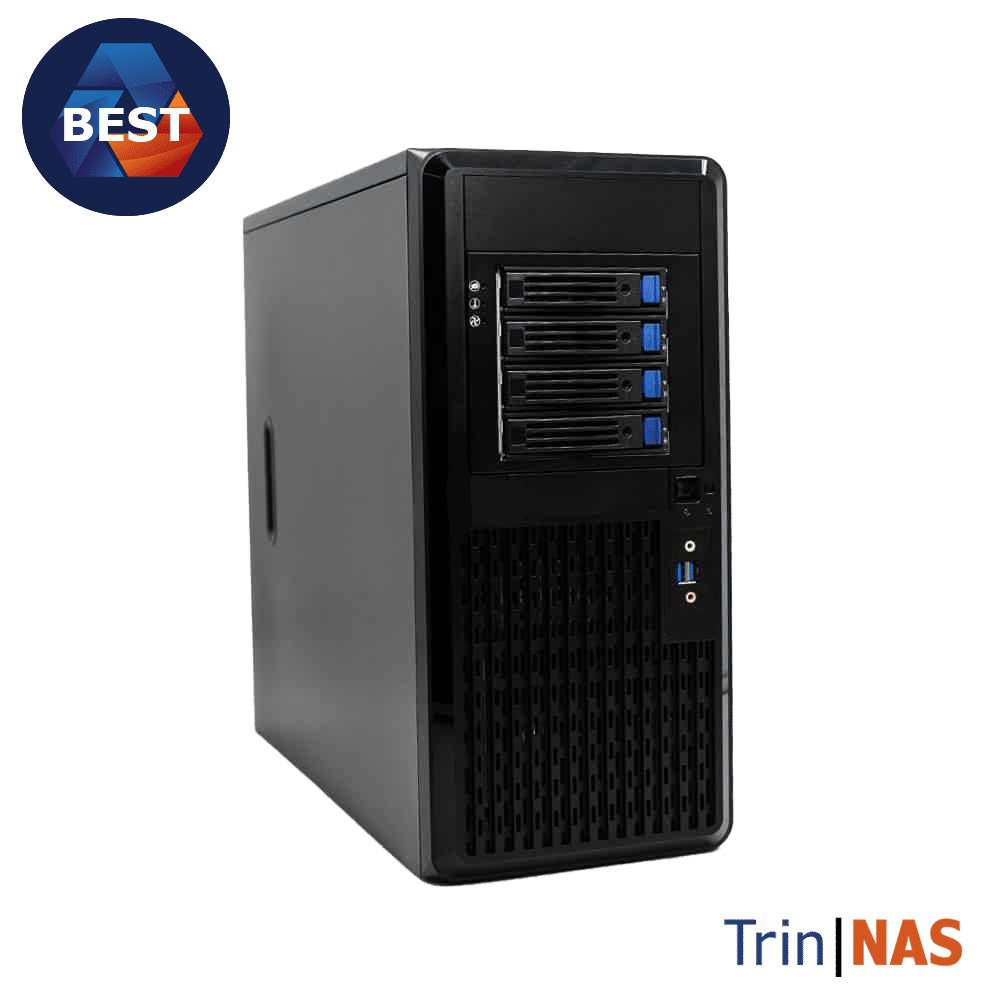

Trin|NAS, Performance Pedestal
Intel® Xeon® 5th Gen Processor
Memory – up to 2TB ECC RDIMM
Operating System – 480GB NVMe
Virtualization Drive – 2 x 2.5″ SSD as RAID1
Storage – up to 4 x 3.5″ Drives as RAID5
2 x Intel Gigabit Server LAN + 1 x Management Port + 1 x COM
2 x USB 2.0 (Type-A) + 2 x USB 3.0 (Type-A) + 3 x USB 3.2 Gen 1 (Type-A)
Foot Print (Tower)
16.9″ (H) x 7.9″ (W) x 18.1″ (D)
| Shipping Weight | 45 lbs |
|---|---|
| Shipping Dimensions | 22.5 × 26.7 × 5.4 in |
| Product Category | Server |
| Model # | TitanTower |
| Chassis | InWin PE689, ATX, Mid Tower Chassis |

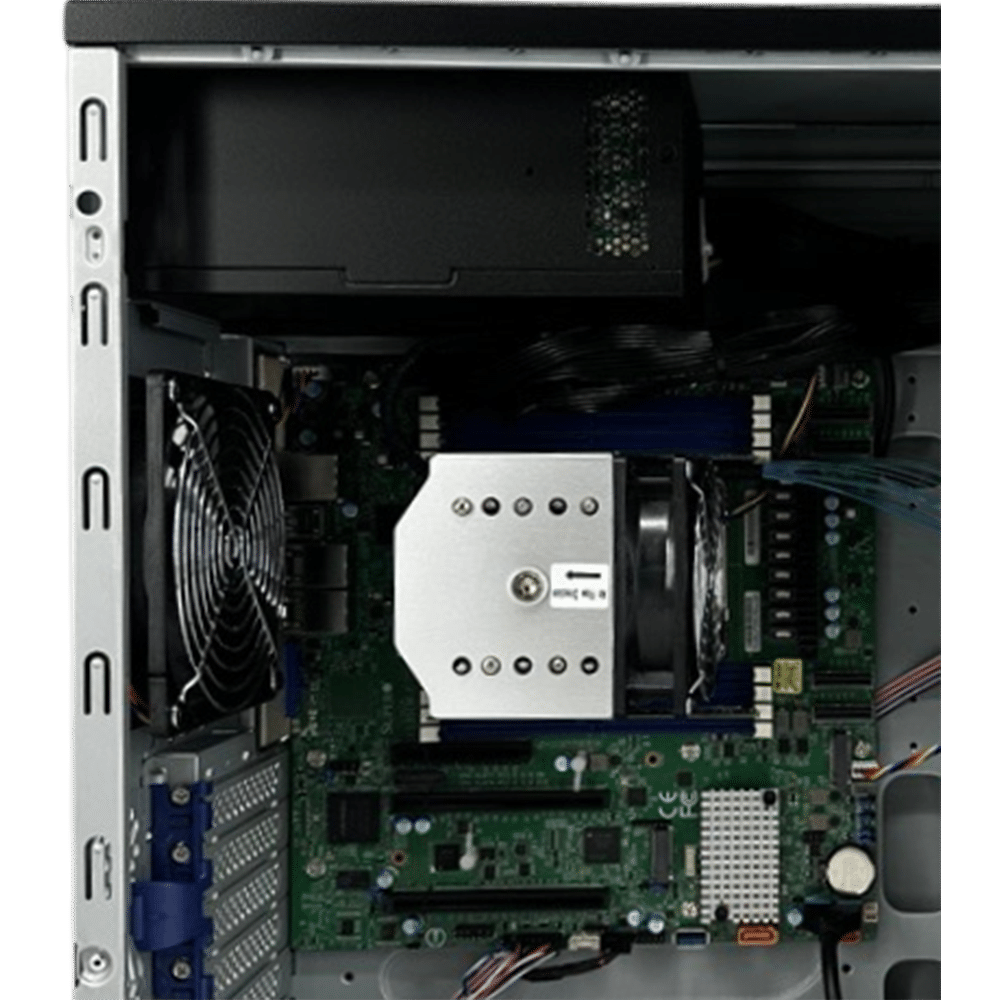

| Motherboard | Supermicro X13SEM-F |
| Power Supply | 500W, Optional Upgrades, 80+ Gold Redundant |
| Chipset | Intel® C741 |
| Processor Support | 5th/4th Gen Intel® Xeon® Scalable processors up to 350W, Socket LGA-4677 (Socket E) up to 64 Cores |
| Memory Support | 4th Generation Intel Xeon Scalable Processor memory has speeds of up to 4800 MT/s (4400 MT/s when fully populated), 8 x ECC RDIMM, DDR5 – 4800 to 5600 MT/s |
| Storage | 2 x M.2 2280/22110 PCIe 5.0 x4, 2 x SATA3 6Gb/s ports, 4 x MCIO (x8) PCIe 5.0 connector |
| Onboard RAID | Intel SATA VROC RAID 0/1/5/10, Optional Intel NVMe VROC Key Supports RAID 0/1 |
| Graphic Ports | 1 x VGA |
| Expansion Slots | 1 x PCIe 5.0 x8, 2 x PCIe 5.0 x16 |
| External Bays | 3.5" x 1, 5.25" x 4 |
| Internal Storage Bays | 3.5"/2.5" x 5, Optional Hot-swap supporting 4 x 3.5"/2.5" Bays |
| Network | Dual LAN with 1GbE with Intel® I350 |
| Front USB Ports | 2 x USB 3.0 (Type-A) |
| Additional Rear Ports | 1 x COM Port, 1 x IMPI LAN Port (RJ45) |
| Front Fan(s) | 1 x 120MM |
| Rear Fan(s) | 1 x 120MM |
| Operating System Support | Windows Server 2022 |
| Physical Product Dimensions | 16.9" (H) x 7.9" (W) x 18.1" (D) |
| Net Weight | 20lbs |
| Warranty | Included – 1 Year Depot Warranty, Optional Extended Depot Warranty Support |
