$628.68
B1460CKC

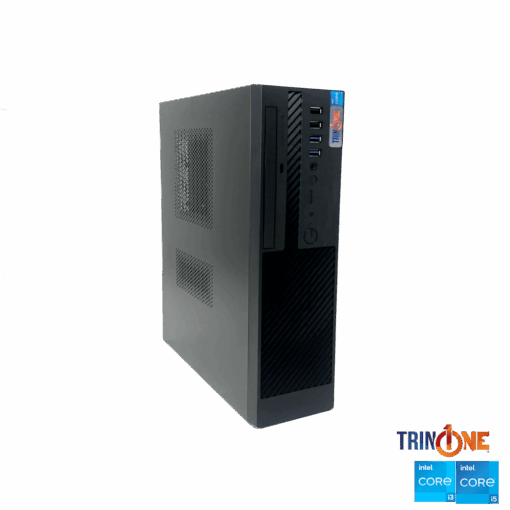

Mainstream Business Ultra Small Form Factor Tower
ASUS PRIME B760M-A AX D5 Motherboard
Intel® 14/th/13th/12th Generation Core™ Processor
Memory – Up to 128GB
Storage – Up to 2 x NVMe
Intel Graphics Supporting Triple Display or Optional Discreet Graphics support
Intel® Wi-Fi 6 + Bluetooth 5.2
Foot Print 12″ (H) x 3.7″ (W) x 10.9″ (D)
| Model # | T1-B1460CKC |
|---|---|
| Chassis | InWin CK722, Micro-ATX, Ultra SFF Slim Chassis (Ultra Small Form Factor) w/ 450 Watt PSU |
| Motherboard | ASUS PRIME B760M-A AX D5 |
| Power Supply | 450W |
| Chipset | Intel® B760 |
| Processor Support | 12th Generation Intel® Core™ Processors, 13th Generation Intel® Core™ Processors, 14th Generation Intel® Core™ Processors |
| Memory Support | 4 x DIMM Slots, Dual Channel, Up to 128GB, Non-ECC, Un-buffered Memory, Supports up to 7000 MT/s (OC) |
| Storage | 6 x SATA 6Gb/s ports, 2 x M.2 (2242/2260/2280) PCIe 4.0 x4 |
| Onboard RAID | Intel® Rapid Storage Technology – SATA RAID 0/1/5/10 |
| Graphics | Optional Discreet Graphics Support, Intel® Graphics |
| Graphic Ports | 1 x DisplayPort 1.4, 2 x HDMI 2.1 |
| Expansion Slots | 1 x PCIe 4.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 2 x PCIe 4.0 x16 (x1 mode) |
| External Bays | Slim ODD x 1 (9.5mm Thickness) |
| Internal Storage Bays | N/A |
| Network | 1 x Realtek 2.5Gb Ethernet, Bluetooth v5.2, Wi-Fi 6 2×2 (802.11 a/b/g/n/ac/ax) |
| Audio | Line In, Line Out, Mic In, Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Front USB Ports | 2 x USB 3.0 (Type-A), 2 x USB 2.0 (Type-A) |
| Additional Front Ports | Audio – Line Out, Audio – Mic In |
| Rear USB Ports | 2 x USB 3.2 Gen 2 ports (Type-A), 4 x USB 2.0 ports (Type-A) |
| Additional Rear Ports | 1 x LAN (RJ45), Audio – Line In, Audio – Line Out, Audio – Mic In |
| Front Fan(s) | 1 x 80MM |
| Rear Fan(s) | N/A |
| Additional Fan(s) | N/A |
| Operating System Support | Windows 11 64-Bit |
| Physical Product Dimensions | 12” x 3.7” x 10.9” |
| Net Weight | 10lbs |
| Warranty | Included – 1 Year Depot Warranty, Optional Extended Depot Warranty Support |
| Shipping Weight | |
| Shipping Dimensions |
