$852.86
B260EM
Mainstream Business Mini Tower
ASUS Prime B860M-A WiFi Motherboard
Intel® Core™ Ultra Series 2
Memory – Up to 192GB
Storage – Up to 2 x NVMe and 2 x 2.5″ SSD/3.5″ HDD
Intel Graphics Supporting Triple Display or Optional Discreet Graphics support
Add On Card Expansion (3 slots)
Intel® Wi-Fi 6E + Bluetooth 5.3
Foot Print 14.1″ (H) x 8″ (W) x 16.5″ (D)
| Model # | T1-B260EM |
|---|---|
| Chassis | InWin EM048, Micro ATX, Mini Tower Chassis |
| Motherboard | PRIME B860M-A WIFI-CSM |
| Power Supply | 450W, Optional Upgrades |
| Chipset | Intel® B860 |
| Processor Support | Intel® Core™ Ultra Processors (Series 2) |
| Memory Support | 4 x DIMM Slots, Dual Channel, 192GB Max, Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM), Supports up to 8666+ MT/s (OC) |
| Storage | 1 x M.2 (2242/2260/2280) PCIe 4.0 x 4, 4 x SATA 6Gb/s ports, 1 x M.2 (2242/2260/2280) PCIe 5.0 x4 |
| Onboard RAID | Intel® Rapid Storage Technology – SATA RAID 0/1/5/10 |
| Graphics | Optional Discreet Graphics Support, Intel® Graphics |
| Graphic Ports | 1 x HDMI 2.1, 2 x DisplayPort 1.4 |
| Expansion Slots | 1 x PCIe 4.0 x1, 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 5.0 x16 |
| External Bays | 3.5" x 1, 5.25" x 2 |
| Internal Storage Bays | 3.5"/2.5" x 2 |
| Network | 1 x Realtek 2.5Gb Ethernet, Bluetooth® v5.3, Wi-Fi 6E 2×2 Wi-Fi 6E (802.11ax) |
| Audio | Line In, Line Out, Mic In, Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Front USB Ports | 2 x USB 3.0 (Type-A), 2 x USB 2.0 (Type-A) |
| Additional Front Ports | Audio – Line Out, Audio – Mic In |
| Rear USB Ports | 1 x USB 10Gbps port (1 x Type-A), 1 x USB 20Gbps port (1 x USB Type-C®), 2 x USB 5Gbps ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A) |

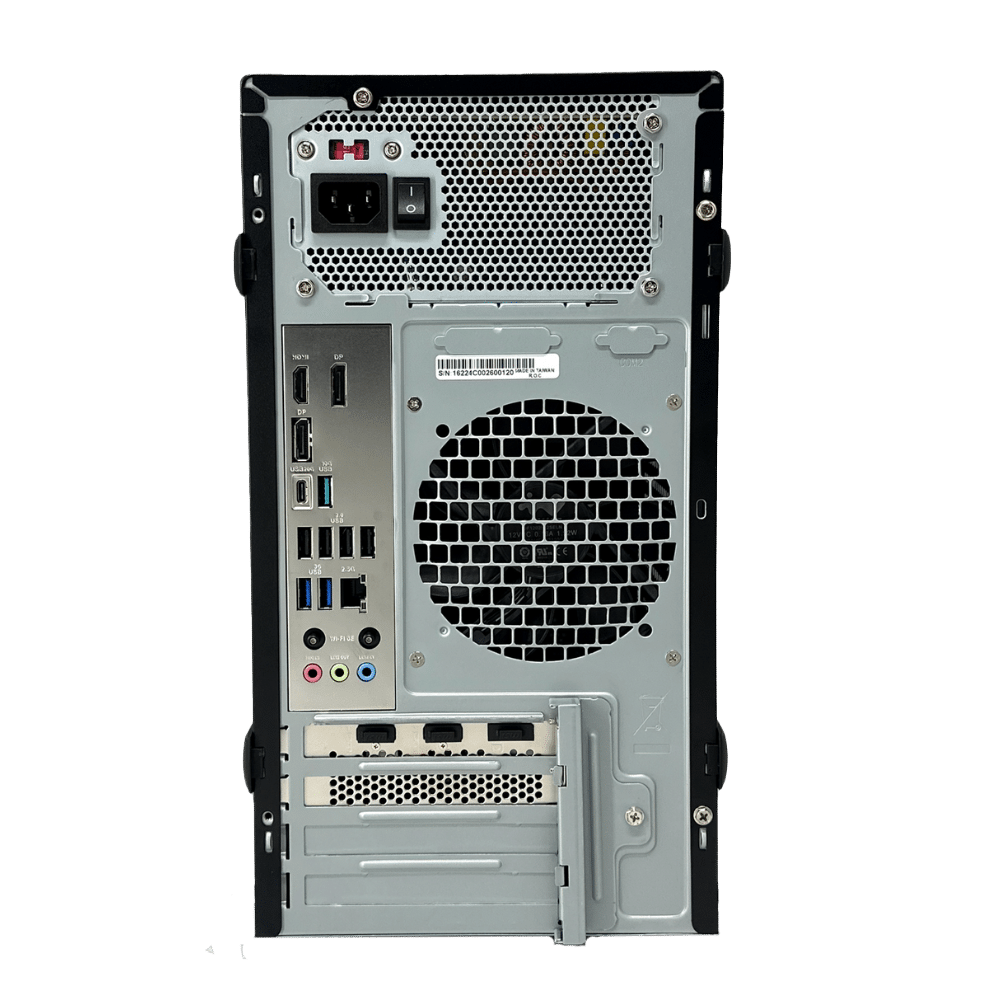

| Additional Rear Ports | 1 x LAN (RJ45), Audio – Line In, Audio – Line Out, Audio – Mic In |
| Front Fan(s) | Optional 1 x 92mm |
| Rear Fan(s) | 1 x 120MM |
| Additional Fan(s) | N/A |
| Operating System Support | Windows 11 64-Bit |
| Physical Product Dimensions | 14.1”(h) x 8”(w) x 16.5”(d) |
| Net Weight | 20lbs |
| Warranty | Included – 1 Year Depot Warranty, Optional Extended Depot Warranty Support |
| Shipping Weight | |
| Shipping Dimensions |
