$1,262.18
B260P7TÂ
Mainstream Business Tower
ASUS TUF B860-PLUS WIFI Motherboard
Intel® Core™ Ultra Series 2
Up to 192GB
Storage – Up to 3 x NVMe and 4 x 2.5″ SSD/3.5″ HDD
Intel Graphics Supporting Triple Display or Optional Discreet Graphics support
Multiple Expansion Slots
Intel® Wi-Fi 7 + Bluetooth 5.4
Foot Print (Tower) 20.3″ (H) x 9.6″ (W) x 18.5″ (D)
| Shipping Weight | 30 lbs |
|---|---|
| Model # | T1-B260P7T |
| Chassis | InWin PE715, ATX, Mid Tower Chassis |
| Motherboard | TUF GAMING B860-PLUS WIFI |
| Power Supply | 500W-1000W |
| Chipset | Intel® B860 |
| Processor Support | Intel® Core™ Ultra Processors (Series 2) |
| Memory Support | 4 x DIMM Slots, Dual Channel, 192GB Max, Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM) |
| Storage | 4 x SATA 6Gb/s ports, 1 x M.2 (2242/2260/2280) PCIe 4.0 x4, 1 x M.2 (2280) PCIe 5.0 x4, 1 x M.2 (2280/22110) PCIe 4.0 x4 |
| Onboard RAID | Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Graphic Ports | 1 x DisplayPort 1.4, 1 x HDMI 2.1, 1 x USB 20Gbps port (USB Type-C®) supports DisplayPort 1.4 video output |
| Expansion Slots | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x1 slot, 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| External Bays | 5.25" x 2 |
| Internal Storage Bays | 4 x 3.5"/2.5" |
| Network | 1 x M.2 slot (Key E), 1 x Realtek 2.5Gb Ethernet, Bluetooth® v5.4, For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details, For Windows 11, Wi-Fi 7 will require  24H2 or later version for full functions, Wi-Fi 7 2×2 (802.11be) 2.4/6GHz, 160MHz, up to 2.9Gbps, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E |
| Front USB Ports | 2 x USB 3.0 (Type-A), 1 x USB 3.1 Gen 2 (Type-C) |
| Additional Front Ports | Audio – Line Out, Audio – Mic In |

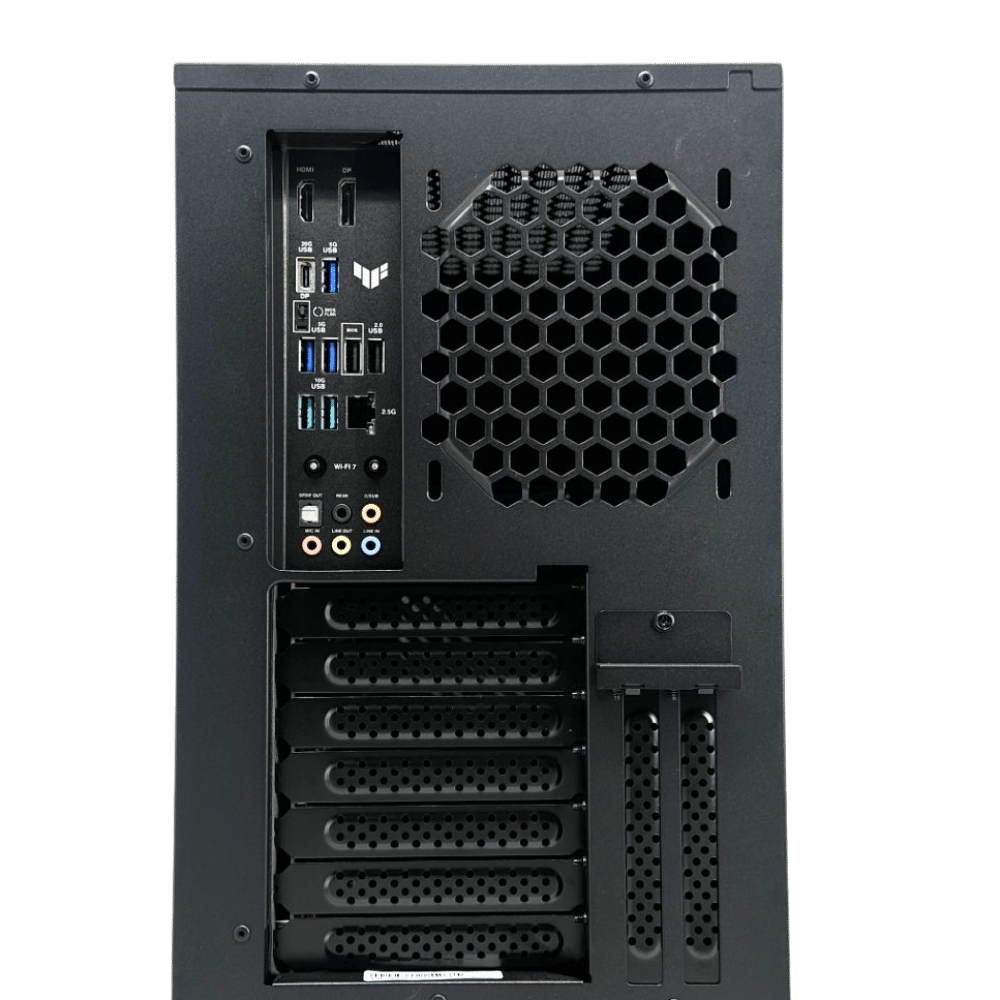

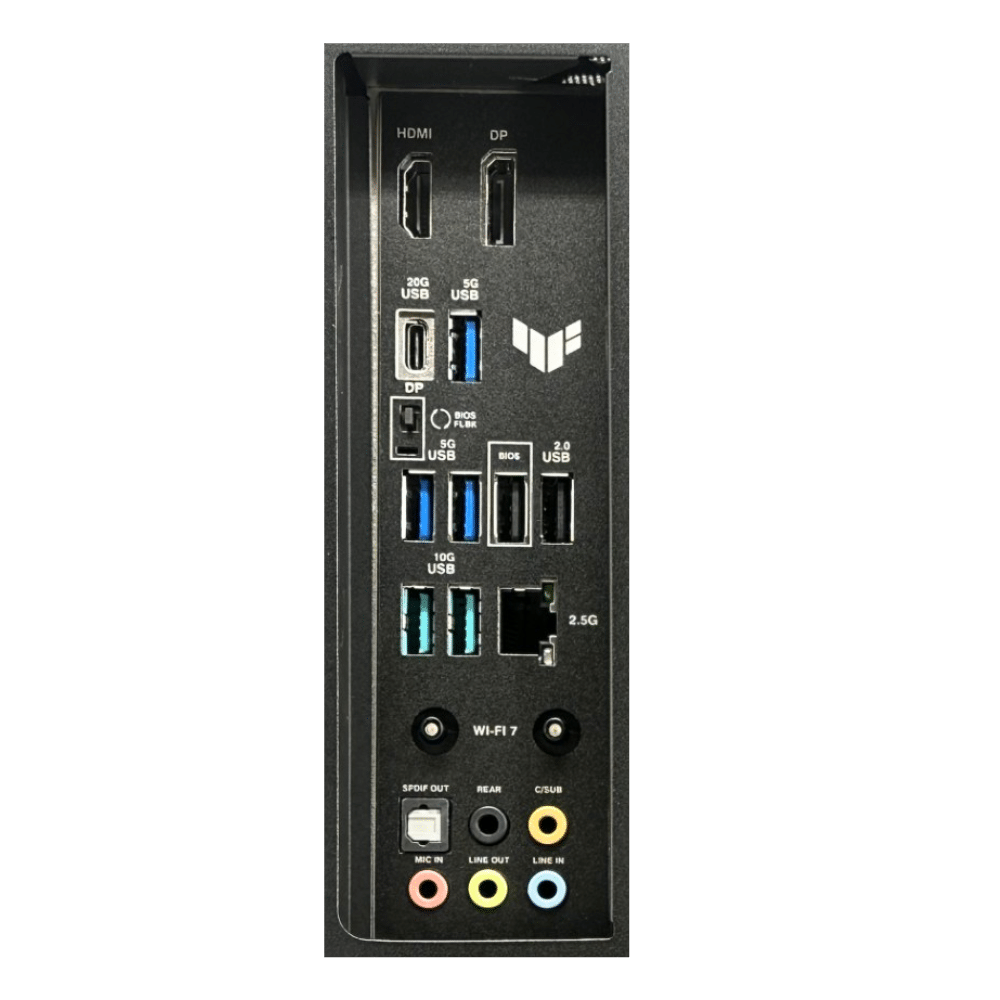

| Rear USB Ports | 2 x USB 2.0 ports (2 x Type-A), 1 x USB 20Gbps port (1 x USB Type-C®), 2 x USB 10Gbps ports (2 x Type-A), 3 x USB 5Gbps ports (3 x Type-A) |
| Additional Rear Ports | 1 x LAN (RJ45), Audio – Center – Sub Woofer, Audio – Line In, Audio – Line Out, Audio – Mic In, Audio – Rear Speaker Out, Audio – SPDIF Out |
| Front Fan(s) | 2 x 120MM |
| Rear Fan(s) | 1 x 120MM |
| Additional Fan(s) | 2 x 120MM Top Fans (Optional) |
| Operating System Support | Windows® 10 64-bit, Windows® 11 64-bit |
| Physical Product Dimensions | 20.3" (H) x 9.6" (W) x 18.5" (D) |
| Net Weight | 20lbs |
| Warranty | Included – 1 Year Depot Warranty, Optional Extended Depot Warranty Support |
| Shipping Dimensions |
