$2,308.91
Essential Server T1-EP4005
Essential AMD EYPC Server Tower
AMD EPYC™ Processor
Memory – up to 256GB DDR5 ECC UDIMM
Storage – 2 x M.2 NVMe + 4 x 3.5″/2.5″ Drives
Onboard AMD RAIDXpert2 supporting up to 4 X SATA (6Gb/s)
Optional Discreet RAID supporting up to 4 X SATA (6Gb/s)
Multiple Expansion Slots
Foot Print (Tower)
16.9″ (H) x 7.9″ (W) x 18.1″ (D)
| Shipping Weight | 45 lbs |
|---|---|
| Shipping Dimensions | 22.5 × 26.7 × 5.4 in |
| Product Category | Server |
| Model # | T1-EP4005 |

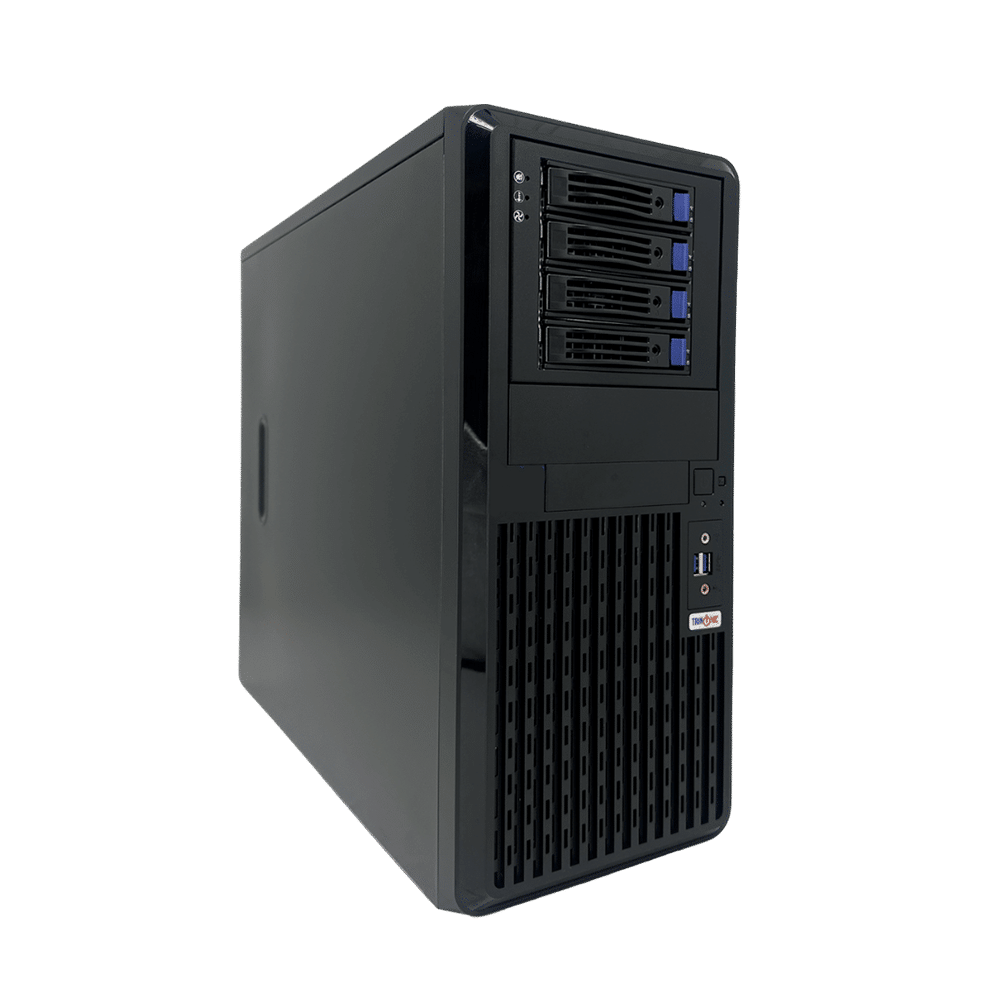

| Chassis | InWin PE689, ATX, Mid Tower Chassis |
| Motherboard | Asus Pro WS B850M-ACE SE Workstation Motherboard |
| Power Supply | 500W, Optional Upgrades |
| Chipset | AMD B850 Chipset |
| Processor Support | AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors and AMD EPYC™ 4005 Series Processors |
| Memory Support | 4 x DIMM Slots, ECC and Non-ECC Un-buffered DIMM, max. 256GB, Supports up to 5600MT/s with AMD EPYC™ 4005 Series Processors, Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors |
| Storage | 2 x M.2 2280/22110 PCIe 5.0 x4, 4 x SATA 6Gb/s |
| Onboard RAID | AMD RAIDXpert2 Technology |
| Graphic Ports | 1 x DisplayPort 1.4, 1 x HDMI 2.1, 1 x VGA port from AST2600 |
| Expansion Slots | 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) via AMD Ryzen™ 8000 Series Desktop Processors, 1 x PCIe 5.0 x16 slot (supports x16 mode) via AMD Ryzen™ 9000 & 7000 Series Desktop Processors and AMD EPYC™ 4005 Series Processors |
| External Bays | 3.5" x 1, 5.25" x 4 |
| Internal Storage Bays | 3.5"/2.5" x 5, Optional Hot-swap supporting 4 x 3.5"/2.5" Bays |
| Network | ASUS LANGuard, 1 x Intel® 2.5Gb Ethernet, 1 x Realtek 10Gb Ethernet, 1 x Realtek 1Gb Ethernet |
| Front USB Ports | 2 x USB 3.0 (Type-A) |
| Additional Rear Ports | N/A |
| Front Fan(s) | 1 x 120MM |
| Rear Fan(s) | 1 x 120MM |
| Operating System Support | Windows Server 2025 |
| Physical Product Dimensions | 16.9" (H) x 7.9" (W) x 18.1" (D) |
| Net Weight | 20lbs |
| Warranty | Included – 1 Year Depot Warranty, Optional Extended Depot Warranty Support |
