$1,335.32

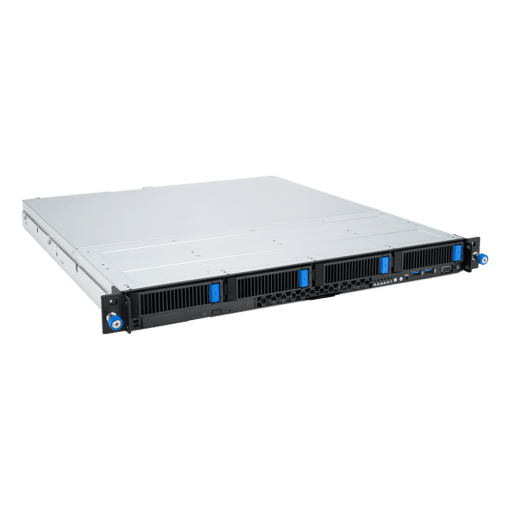

TrinOne Essential Server T1-XE2401
1U Essential Server Rack
Intel® Xeon® E Processor Family
Memory – up to 128GB
Onboard Intel RSTe Software RAID, Optional Discreet RAID Controllers
Storage – 1 x M.2 NVMe + 4 x 3.5″/2.5″ SAS/SATA Drives
80+ Gold 350W PSU
Includes Tool-Less Friction Rail Kit
Foot Print (Rack)
1.73″ (H) x 17.3″ (W) x 19.57″ (D)
| Shipping Weight | 45 lbs |
|---|---|
| Shipping Dimensions | 22.5 × 26.7 × 5.4 in |
| Product Category | Server |
| Model # | T1-P131U |
| Chassis | ASUS R12E 1U Rackmount Chassis |
| Included Railkit | ASUS Tool-Less Friction Rails for 1U/2U Servers (13SV0006AM0821) |
| Motherboard | P13R-M/SYS |
| Power Supply | 350W 80+ Gold Single Power Supply |
| Chipset | Intel® C262 Chipset |
| Processor Support | Pentium®, Intel® Xeon® E-2400 processor (up to 95W) |
| Memory Support | 4 x DIMM Slots, Dual Channel, Up to 128GB, DDR5 – ECC UDIMM |
| Storage | 1 x M.2 2242/2260/2280 PCIe x4 NVMe, 4 x 3.5”/2.5” Hot-Swap HDD Bays, 8 x SATA3 6Gb/s ports |
| Onboard RAID | RAID 0/1/10/5 (Intel RSTe) |
| Graphic Ports | 1 x VGA |
| Expansion Slots | 1 x PCI-E x 16 (Gen5 x16 Link, switch to x8 link when slot B occupied), FH/HL, 1 x PCI-E x 8 (Gen4 x4 Link), Proprietary R/A slot, 1 x PCI-E x 8 (Gen5 x8 Link), HH/HL |
| External Bays | Slim ODD x 1 |
| Internal Storage Bays | 4 x 3.5"/2.5" SATA 6Gb/s Hot-swap Bays |
| Network | 1 x Mgmt LAN, 2 x Intel® I210-AT RJ-45 Gbe LAN Ports |
| Front USB Ports | 2 x USB 3.2 Gen 1 (Type-A) |
| Additional Rear Ports | 1 x COM Port, 3 x USB 3.2 Gen 2 (Type-A) |
| Operating System Support | Windows Server 2022 |
| Physical Product Dimensions | 19.57" x 17.3" x 1.73", 497mm x 439.5mm x 44mm (1U) |
| Net Weight | 22.7 lbs |
| Warranty | Included – 1 Year Depot Warranty, Optional Extended Depot Warranty Support |
