$647.22



H1210x

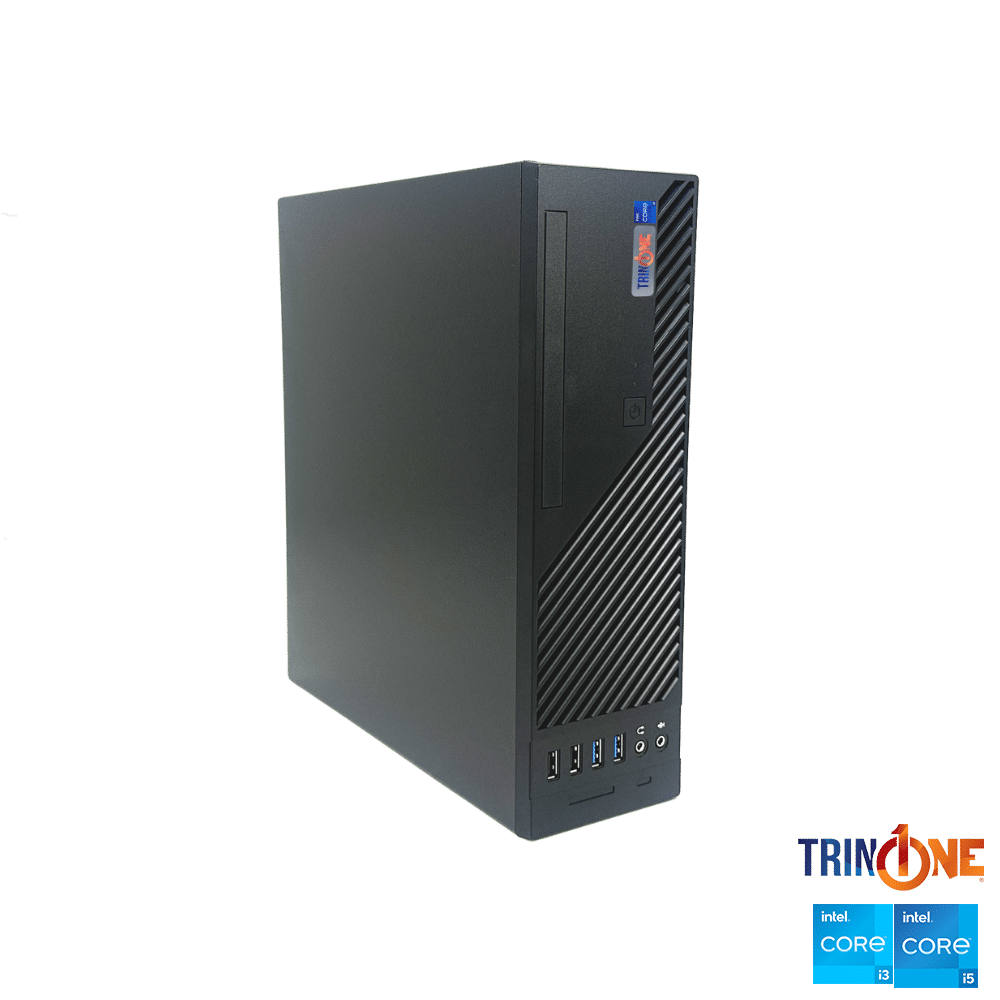

Essential Business Ultra Small Form Factor Tower


  • 12th Gen Intel® Core™ Family

  • Up to 64GB

  • Storage- Up to 1 x NVMe and 1 x 2.5” SSD

  • Intel UHD 700 Series Graphics Supporting Triple Display or Optional Discreet Graphics support

  • Foot Print 12″ x 3.7″ x 10.9″



Model #

T1-1210x

Chassis

InWin CJ712, Micro-ATX, Ultra SFF Chassis

Motherboard

ASUS PRIME H610M-A D4

Power Supply

265W

Chipset

Intel® H610

Processor Support

12th Generation Intel® Core™ Processors, Pentium® Gold / Celeron®

Memory Support

2 x DIMM Slots, DDR4-2133, DDR4-2400, DDR4-2666, DDR4-2800, DDR4-2933, DDR4-3000, DDR4-3200, Dual Channel, Up to 64GB

Storage

1 x M.2 (2242/2260/2280) PCIe 4.0 x 4, 1 x M.2 (2242/2260/2280) SATA & PCIE 3.0 x2, 4 x SATA 6Gb/s ports

Onboard RAID

N/A

Graphics

Intel® UHD Graphics, Optional Discreet Graphics Support

Graphics Ports

Display Port 1.4, HDMI, VGA (D-Sub)

Expansion Slots

1 x PCIe 3.0 x1, 1 x PCIe 4.0 x16, Low Profile Slot x 4

External Bays

Slim ODD x 1

Internal Storage Bays

2.5" x 1, 3.5"/2.5" x 1

Network

1 x Intel® 1Gb Ethernet

Audio

Realtek ALC897/887 7.1 Surround Sound High Definition Audio

Front USB Ports

2 x USB 3.0 (Type-A), 2 x USB 2.0 (Type-A)

Additional Front Ports

Audio – Line Out, Audio – Mic In

Rear USB Ports

2 x USB 3.2 Gen 2 ports (Type-A), 4 x USB 2.0 (Type-A)

Additional Rear Ports

1 x LAN (RJ45), 1 x V-M.2 slot (Key E), 2 x PS/2, Audio – Line In, Audio – Line Out, Audio – Mic In

Front Fan(s)

1 x 80MM

Rear Fan(s)

N/A

Additional Fan(s)

N/A

Operating System Support

Windows 11 64-Bit, Windows® 10 64-bit

Physical Product Dimensions

12” x 3.7” x 10.9”

Net Weight

11.9 lbs

Warranty

Included – 1 Year Depot Warranty, Optional Extended Depot Warranty Support

Shipping Weight
Shipping Dimensions

Your Configuration
