$1,158.32
Z290A5T
Professional Business Tower w/ RGB

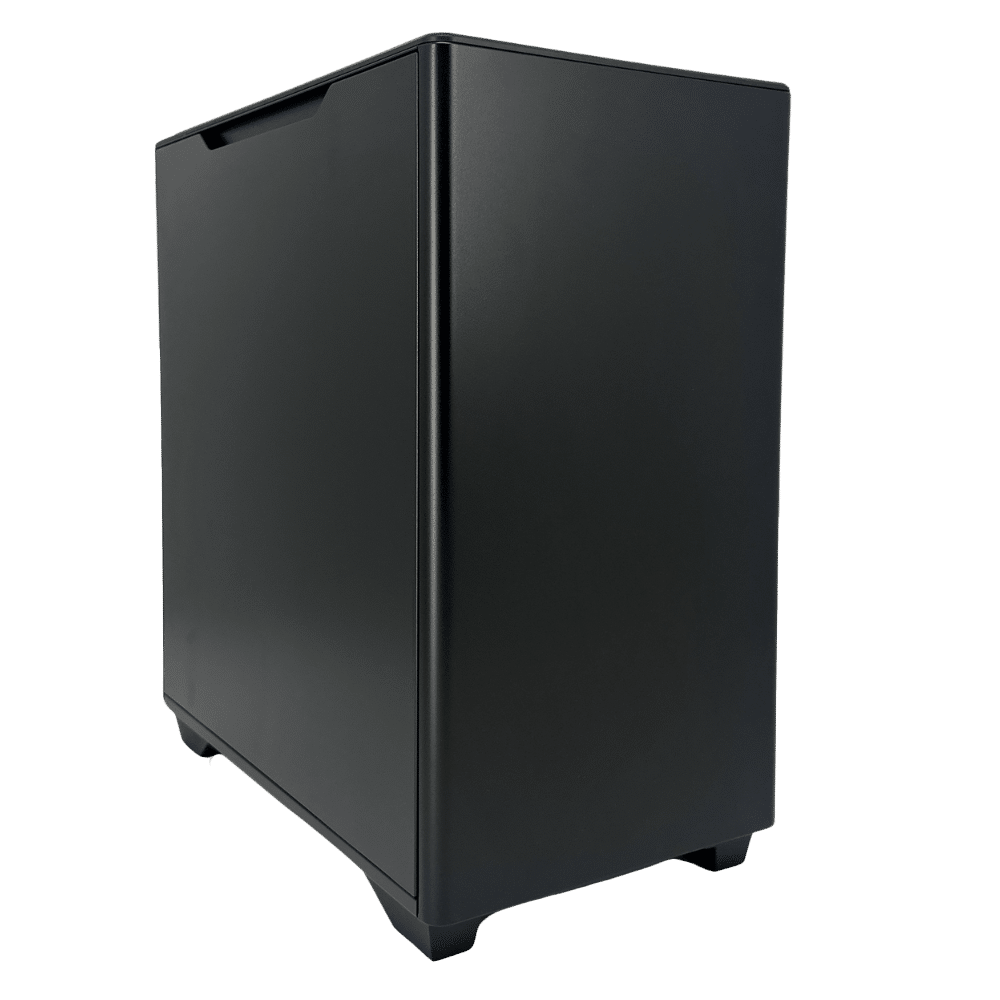

This chassis can be configured with either a tempered glass or solid aluminum left side panel
Chassis RGB Lighting
ASUS TUF Z890-Plus WIFI Motherboard
Intel® Core™ Ultra Series 2
Memory – up to 192GB
Storage – up to 4 x M.2 SSD + 4 x 2.5″ SSD
Intel Graphics Supporting Triple Display or optional Discreet Graphics support
Wi-Fi 7 2×2 (802.11be) with Bluetooth 5.4
Multiple Expansion Slots
Foot Print (Tower) 15.7” H x 8.5” W x 16” D
| Shipping Weight | 25 lbs |
|---|---|
| Shipping Dimensions | 18.6 × 10.9 × 19 in |
| Model # | T1-Z290A5T |
| Chassis | InWin A5 ATX Chassis |
| Motherboard | ASUS TUF Z890-Plus WIFI Motherboard |
| Power Supply | 850-1300W, 850W (Included), ATX 3.0 |
| Chipset | Intel® Z890 |
| Processor Support | Intel® Core™ Ultra Processors (Series 2) |
| Memory Support | 4 x DIMM Slots, Dual Channel, 192GB Max, DDR5 – Support up to 9066+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM), Supports Intel® Extreme Memory Profile (XMP) memory module |
| Storage | 4 x SATA 6Gb/s ports, 1 x M.2 (2242/2260/2280) PCIe 4.0 x4 & SATA mode, 1 x M.2 (2242/2260/2280) PCIe 5.0 x4, 1 x M.2 (2280) PCIe 4.0 x4, 1 x M.2 (2280/22110) PCIe 4.0 x4 |
| Onboard RAID | Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5 |
| Graphic Ports | 1 x DisplayPort 1.4, 1 x HDMI 2.1, 1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort 2.1 and Thunderbolt™ video outputs, 1 x USB 20Gbps port (USB Type-C®) supports DisplayPort 1.4 video output |
| Expansion Slots | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x 4, 1 x PCIe 4.0 x16 slot (supports x4 mode), 2 x PCIe 4.0 x1 slots |
| External Bays | N/A |
| Internal Storage Bays | 2 x 3.5" and 2 x 2.5" or 4 x 2.5" |
| Network | 1 x Intel® 2.5Gb Ethernet port, Bluetooth® v5.4, TUF LANGuard, Wi-Fi 7 2×2 (802.11be) Supports 2.4/5/6GHz frequency band, 320MHz bandwidth, up to 5.8 Gbps |
| Front USB Ports | 1 x USB 20Gbps (USB Type-C), 2 x USB 5Gbps (2 x USB Type-A) |
| Additional Front Ports | Audio – Headphone/Microphone Combo Jack |

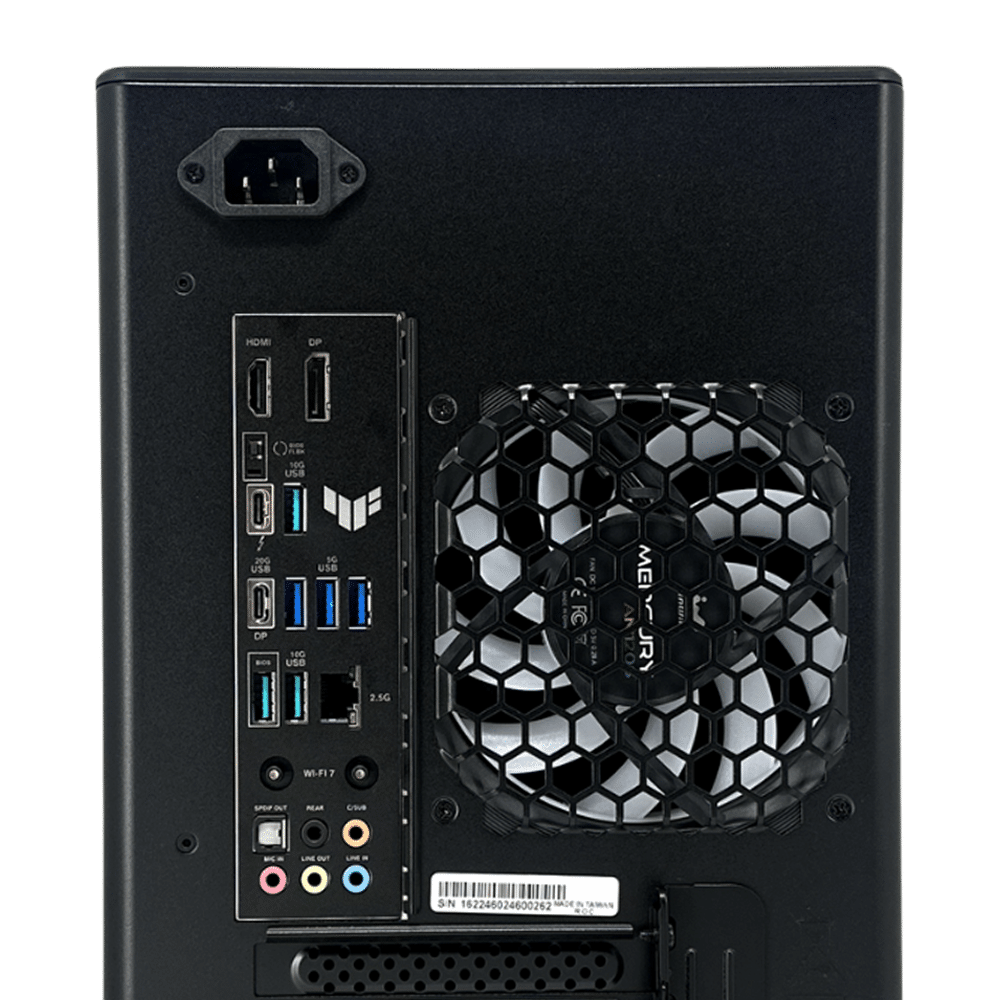

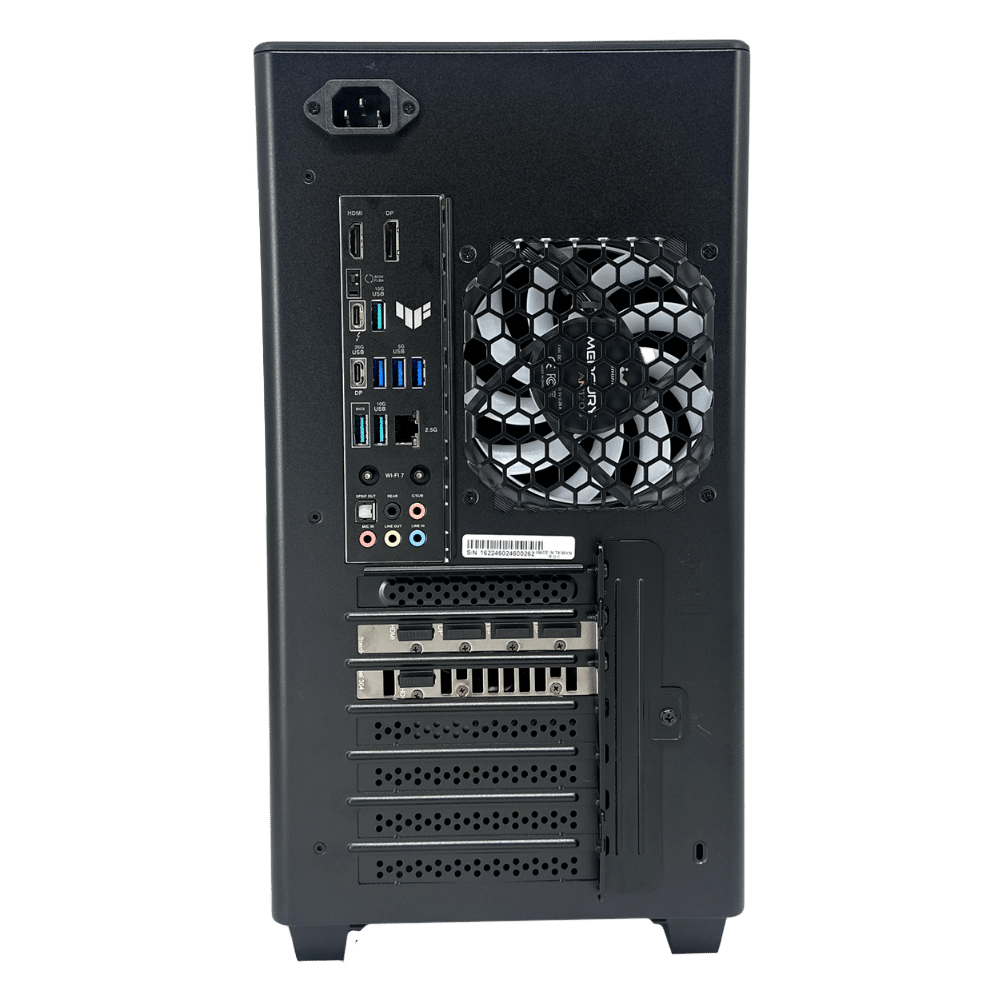

| Rear USB Ports | 1 x Thunderbolt™ 4 port (1 x USB Type-C®), 1 x USB 20Gbps port (1 x USB Type-C®), 3 x USB 10Gbps ports (3 x Type-A), 3 x USB 5Gbps ports (3 x Type-A) |
| Additional Rear Ports | 1 x LAN (RJ45), Audio – Center – Sub Woofer, Audio – Line Out, Audio – Rear Speaker Out, 1 x Optical S/PDIF out port, 1 x Wi-Fi Module |
| Front Fan(s) | N/A |
| Rear Fan(s) | 1 x 120MM |
| Additional Fan(s) | Optional 2 x 120MM Top Fans, 1 x 120MM Bottom Fan (Intake) |
| Operating System Support | Windows® 11 64-bit |
| Physical Product Dimensions | 15.7" x 8.5" x 16" |
| Net Weight | 20lbs |
| Warranty | Included – 1 Year Depot Warranty, Optional Extended Depot Warranty Support |
