From: $1,110.30
Z290P6T

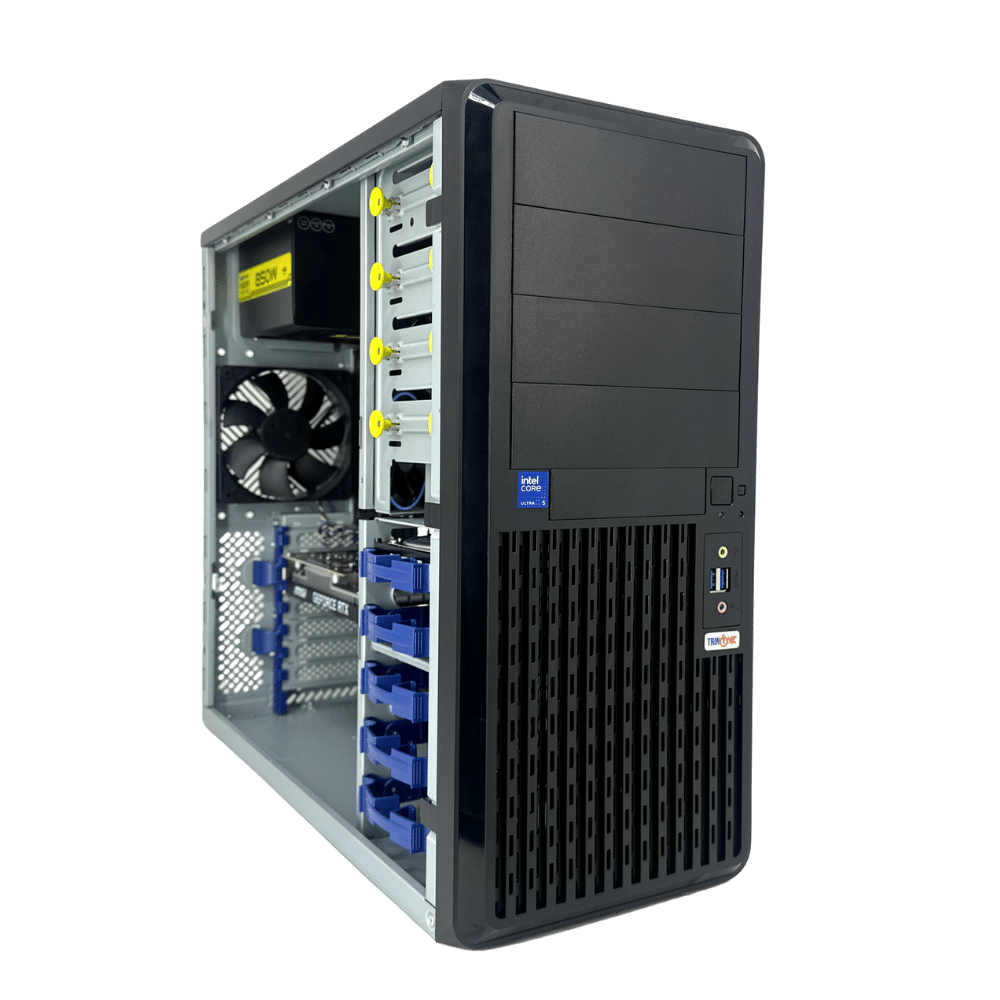

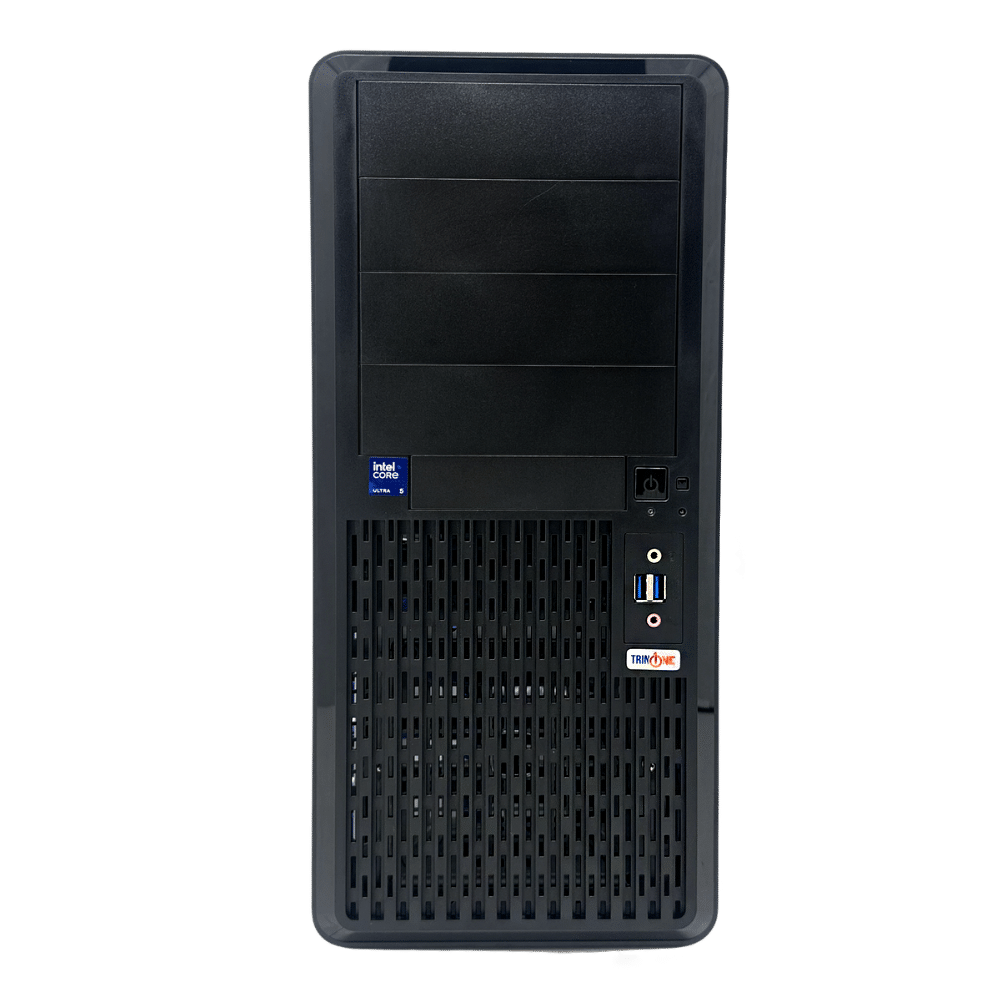

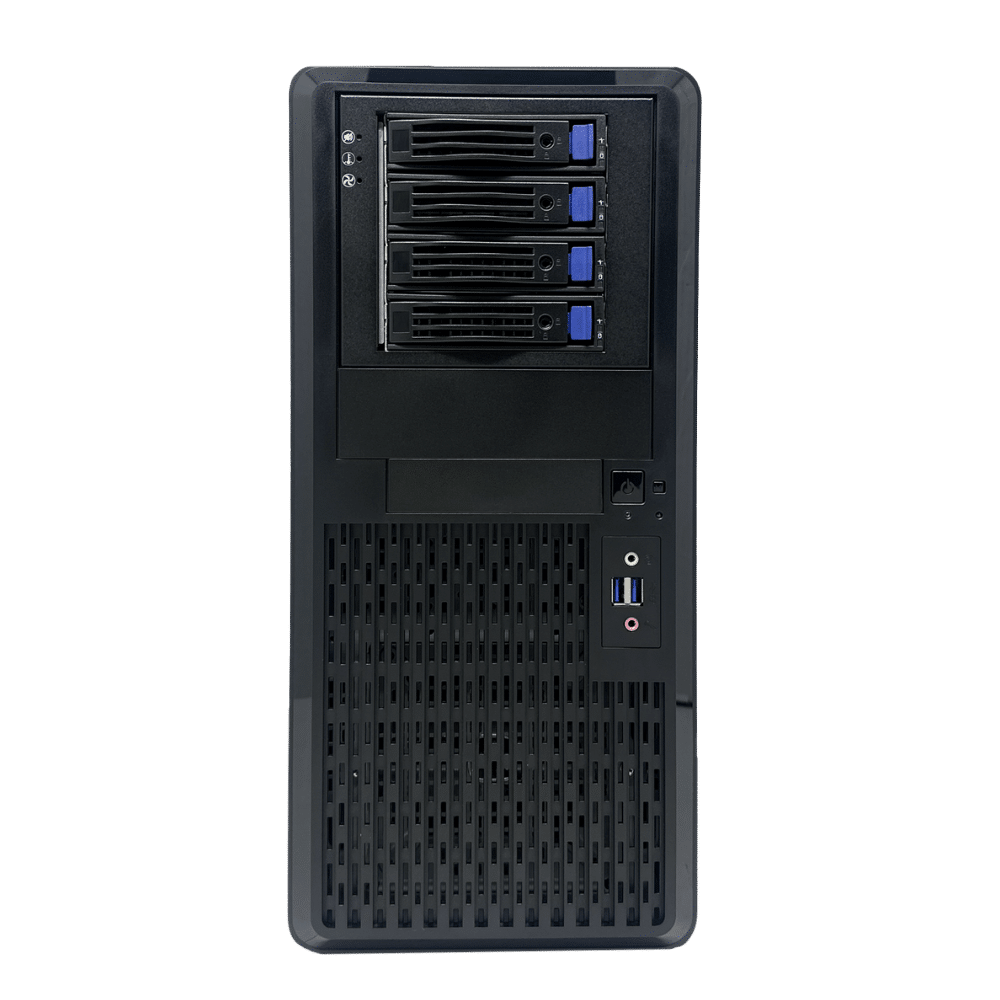

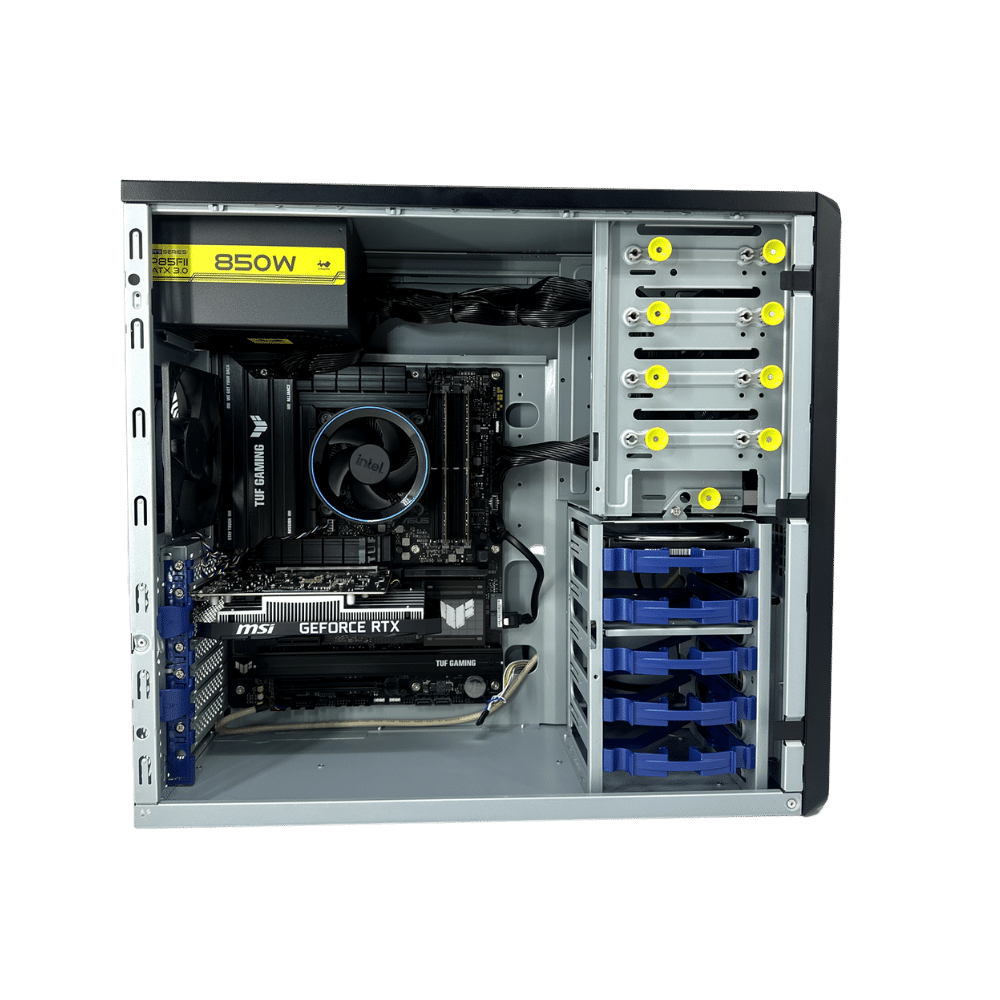

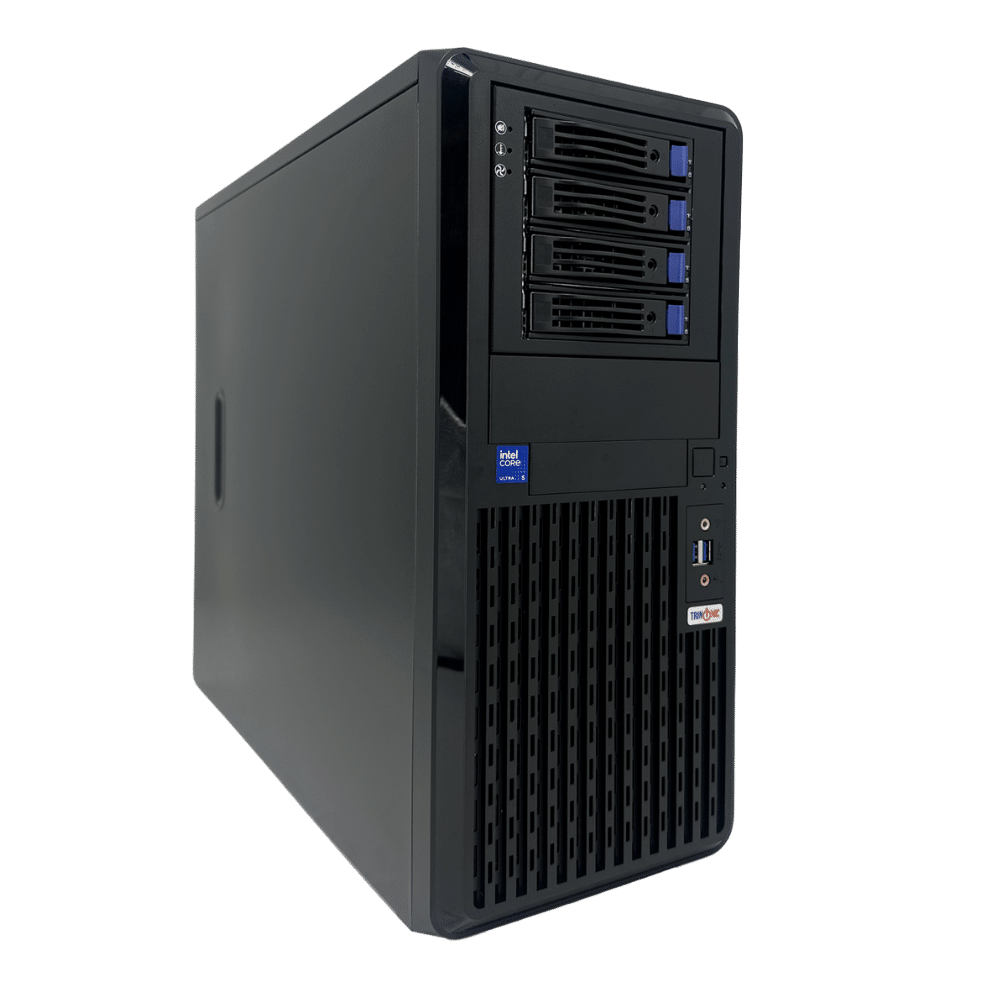

Professional Business Tower
ASUS TUF Z890-Plus WIFI Motherboard
Intel® Core™ Ultra Series 2
Memory – up to 192GB
Storage – up to 4 x NVMe and 4 x 2.5″ SSD/3.5″ HDD
Intel Graphics Supporting Triple Display or optional Discreet Graphics support
Wi-Fi 7 2×2 (802.11be) with Bluetooth 5.4
Multiple Expansion Slots
Foot Print (Tower) 16.9″ (H) x 7.9″ (W) x 18.1″ (D)
| Shipping Weight | 25 lbs |
|---|---|
| Shipping Dimensions | 25 × 25 × 12 in |
| Model # | T1-Z290P6T |
| Chassis | InWin PE689, ATX, Mid Tower Chassis |
| Motherboard | ASUS TUF Z890-Plus WIFI Motherboard |
| Power Supply | 850-1300W |
| Chipset | Intel® Z890 |
| Processor Support | Intel® Core™ Ultra Processors (Series 2) |
| Memory Support | 4 x DIMM Slots, Dual Channel, 192GB Max, DDR5 – Support up to 9066+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM), Supports Intel® Extreme Memory Profile (XMP) memory module |
| Storage | 4 x SATA 6Gb/s ports, 1 x M.2 (2242/2260/2280) PCIe 4.0 x4 & SATA mode, 1 x M.2 (2242/2260/2280) PCIe 5.0 x4, 1 x M.2 (2280) PCIe 4.0 x4, 1 x M.2 (2280/22110) PCIe 4.0 x4 |
| Onboard RAID | Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5 |
| Graphic Ports | 1 x DisplayPort 1.4, 1 x HDMI 2.1, 1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort 2.1 and Thunderbolt™ video outputs, 1 x USB 20Gbps port (USB Type-C®) supports DisplayPort 1.4 video output |
| Expansion Slots | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x 4, 1 x PCIe 4.0 x16 slot (supports x4 mode), 2 x PCIe 4.0 x1 slots |
| External Bays | 3.5" x 1, 5.25" x 4 |

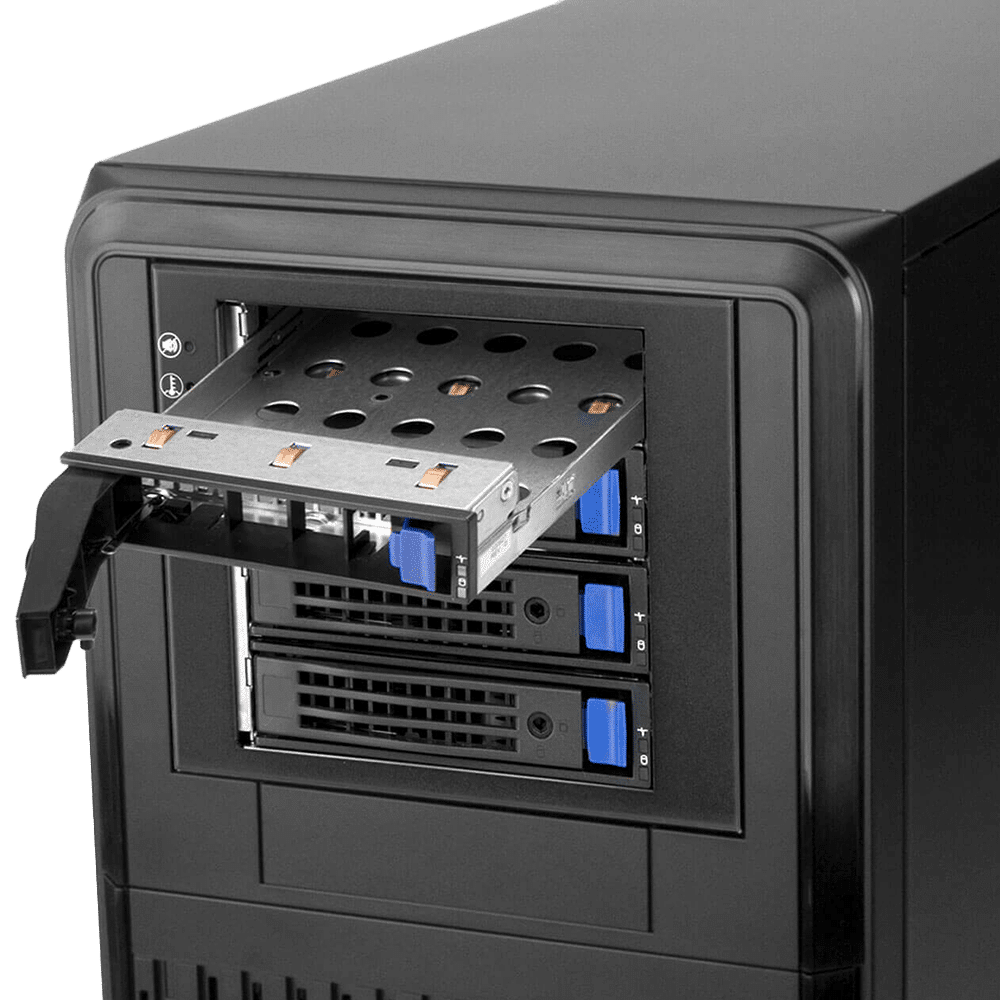

| Internal Storage Bays | 4 x 3.5"/2.5" |
| Network | 1 x Intel® 2.5Gb Ethernet port, TUF LANGuard |
| Wireless | Bluetooth® v5.4, Wi-Fi 7 2×2 (802.11be) Supports 2.4/5/6GHz frequency band, 320MHz bandwidth, up to 5.8 Gbps |
| Front USB Ports | 2 x USB 3.0 (Type-A) |
| Additional Front Ports | Audio – Line Out, Audio – Mic In |

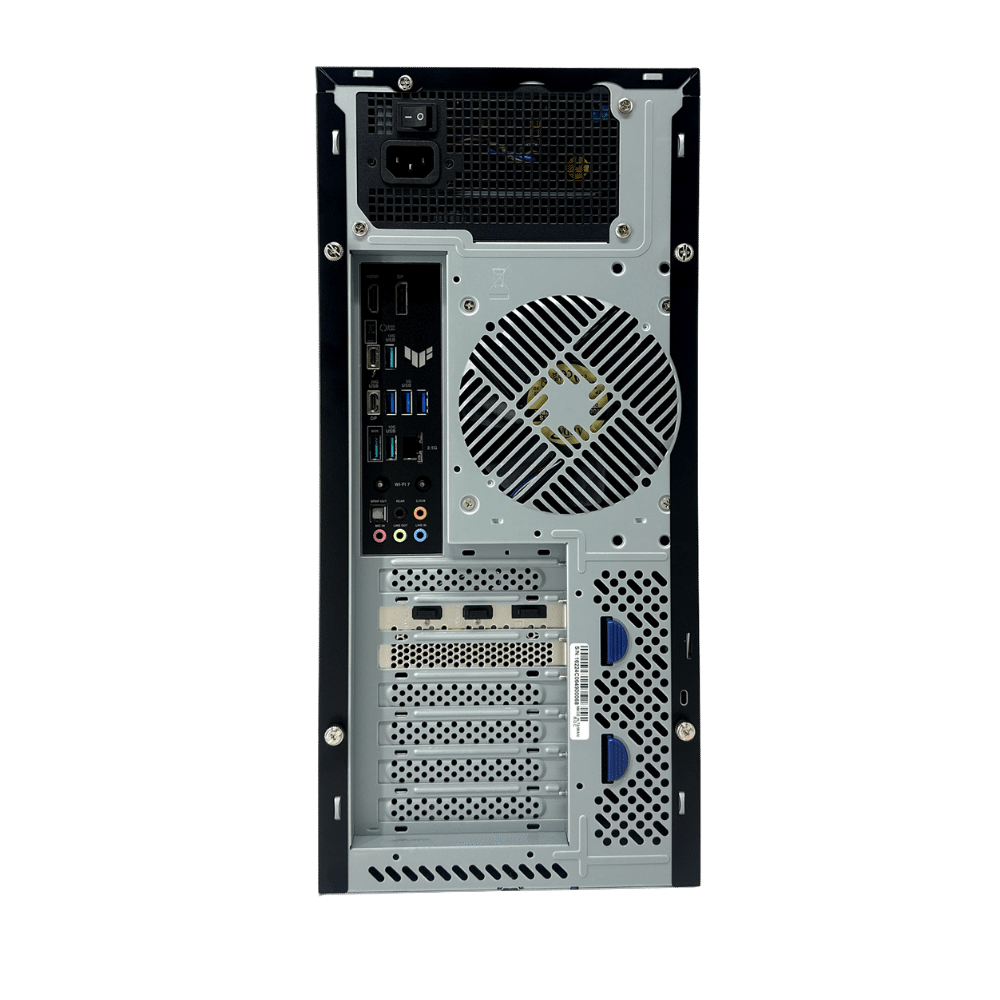

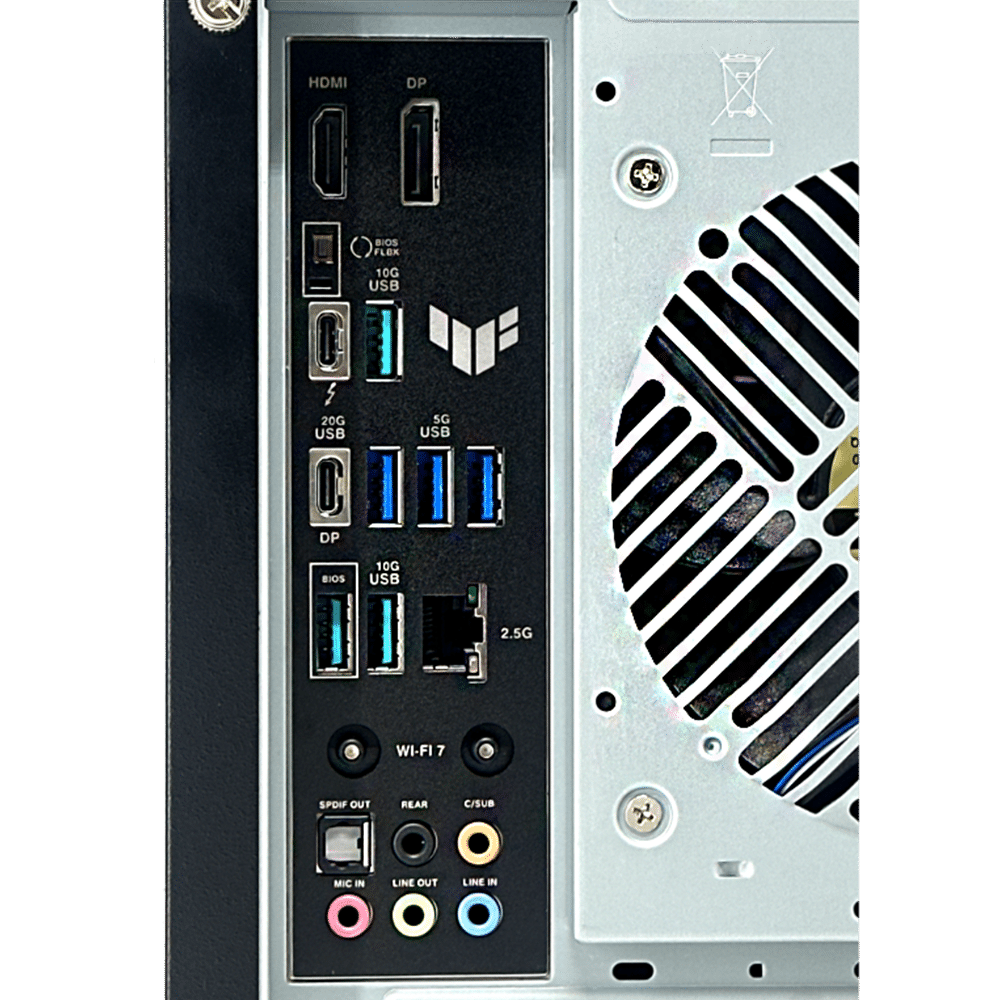

| Rear USB Ports | 1 x Thunderbolt™ 4 port (1 x USB Type-C®), 1 x USB 20Gbps port (1 x USB Type-C®), 3 x USB 10Gbps ports (3 x Type-A), 3 x USB 5Gbps ports (3 x Type-A) |
| Additional Rear Ports | 1 x PS/2 keyboard/mouse combo, Audio – Center – Sub Woofer, Audio – Line Out, Audio – Rear Speaker Out, 1 x Wi-Fi Module |
| Front Fan(s) | 1 x 120MM |
| Rear Fan(s) | 1 x 120MM |
| Operating System Support | Windows® 11 64-bit |
| Physical Product Dimensions | 16.9" (H) x 7.9" (W) x 18.1" (D) |
| Net Weight | 25.0 lbs |
| Warranty | Included – 1 Year Depot Warranty, Optional Extended Depot Warranty Support |
